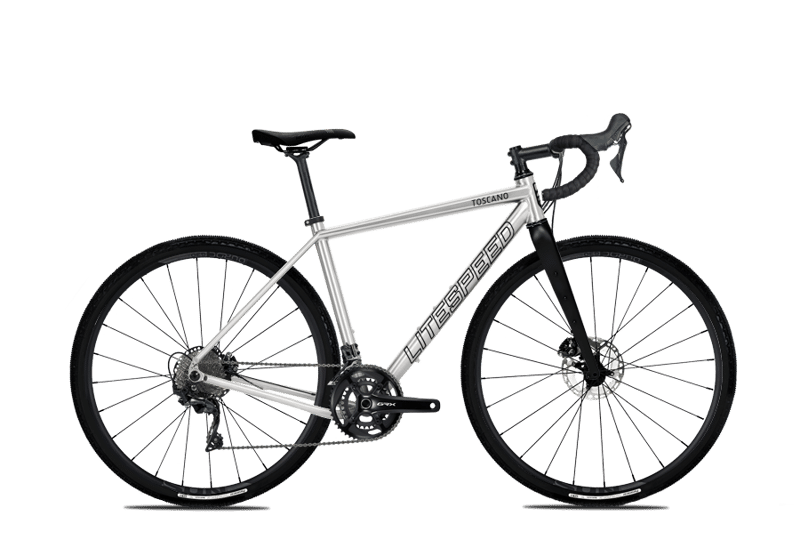

2023 Litespeed Toscano geometry
Full frame geometry for the 2023 Litespeed Toscano, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 535 | 380 | 74 | 71 | 88 | 532 | 445 | 727 | 78 | 596 | 425 | 1009 | 50 |
| XS | 535 | 370 | 74.5 | 70 | 88 | 517 | 430 | 717 | 78 | 596 | 425 | 1008 | 50 |
| M | 560 | 390 | 73.5 | 71.5 | 116 | 55.5 | 47 | 757 | 74 | 610 | 425 | 1024 | 5 |
| ML | 585 | 395 | 73.5 | 71.5 | 143 | 56.8 | 49.5 | 790 | 71 | 623 | 425 | 1037 | 5 |
| L | 615 | 405 | 73 | 72 | 168 | 59 | 52 | 813 | 68 | 636 | 425 | 1051 | 5 |
| XL | 640 | 415 | 73 | 72 | 205 | 61 | 55 | 845 | 68 | 657 | 425 | 1073 | 5 |
All measurements in millimetres unless marked (°) for angles.
