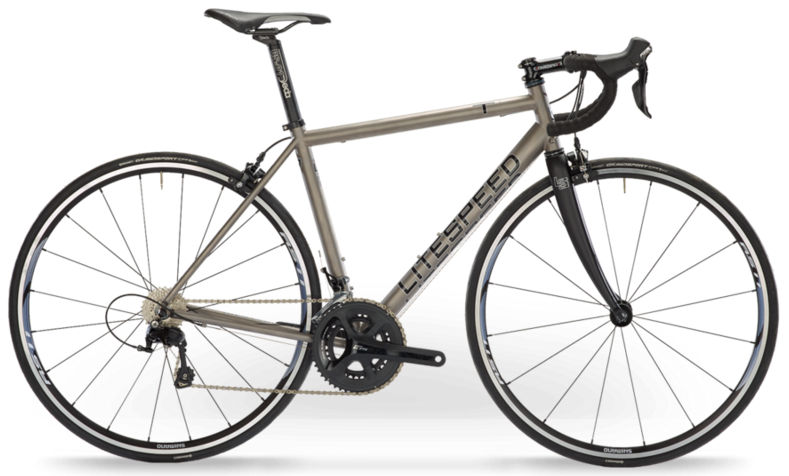

2016 Litespeed T7 geometry
Full frame geometry for the 2016 Litespeed T7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 541 | 366 | 74 | 72.5 | 125 | 525 | 730 | 68 | 568 | 420 | 977 | 43 |
| M | 564 | 372 | 73.5 | 73 | 145 | 540 | 747 | 71 | 575 | 420 | 983 | 43 |
| ML | 584 | 381 | 73 | 73 | 170 | 560 | 767 | 71 | 589 | 420 | 997 | 43 |
| L | 612 | 384 | 73 | 73 | 195 | 570 | 789 | 71 | 600 | 420 | 1008 | 43 |
All measurements in millimetres unless marked (°) for angles.
