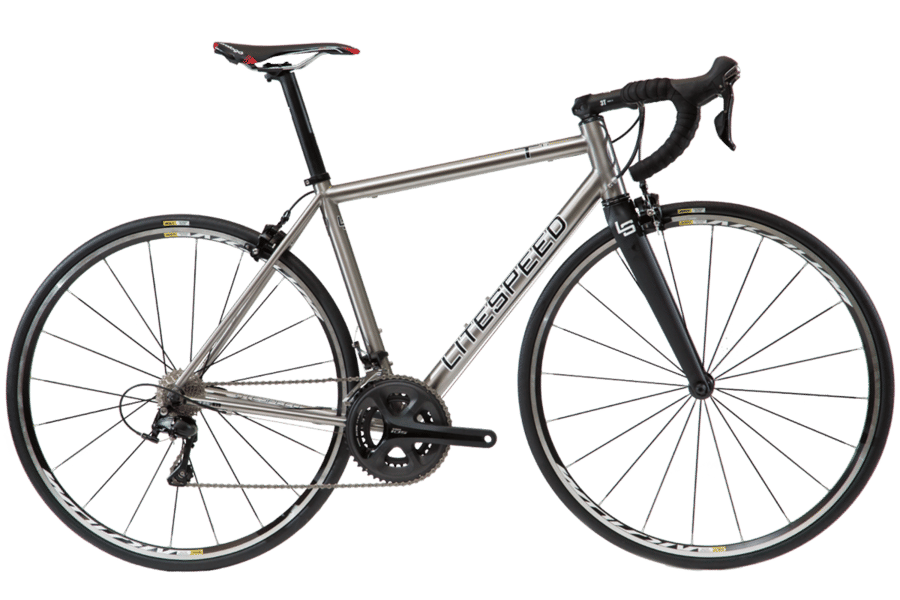

2018 Litespeed T6 geometry
Full frame geometry for the 2018 Litespeed T6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 541 | 370 | 74 | 72.5 | 125 | 525 | 475 | 735 | 71 | 570 | 420 | 979 | 45 |
| M | 561 | 373 | 73.5 | 73 | 145 | 540 | 495 | 757 | — | 574 | 420 | 984 | 45 |
| ML | 585 | 381 | 73 | 73 | 170 | 560 | 515 | 779 | — | 590 | 420 | 999 | 45 |
| L | 608 | 386 | 73 | 73 | 195 | 570 | 535 | 800 | — | 600 | 420 | 1010 | 45 |
All measurements in millimetres unless marked (°) for angles.
