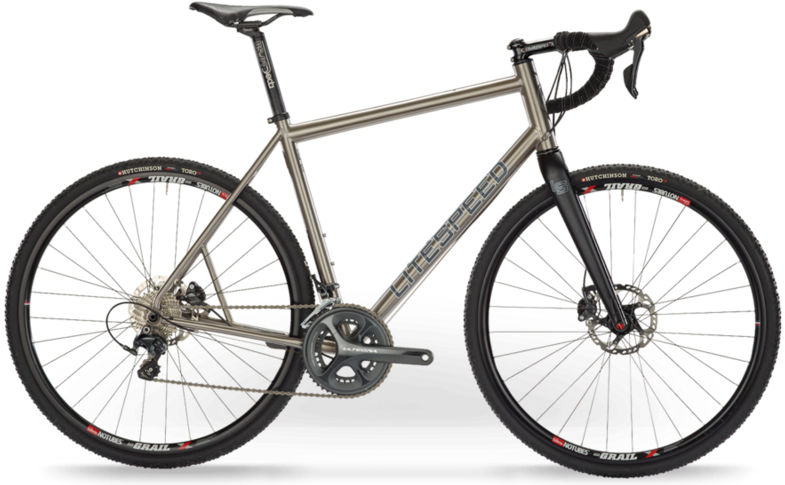

2016 Litespeed T5G geometry
Full frame geometry for the 2016 Litespeed T5G, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 560 | 360 | 73.5 | 72 | 125 | 525 | 741 | 68 | 581 | 430 | 1002 | 50 |
| M | 585 | 365 | 73 | 72.5 | 145 | 540 | 758 | 71 | 588 | 430 | 1008 | 50 |
| ML | 610 | 375 | 72.5 | 72.5 | 170 | 560 | 778 | 71 | 602 | 430 | 1022 | 50 |
| L | 635 | 380 | 72.5 | 72.5 | 195 | 570 | 800 | 71 | 613 | 430 | 1033 | 50 |
| XL | 660 | 387 | 72 | 72.5 | 220 | 590 | 825 | 74 | 620 | 430 | 1042 | 50 |
All measurements in millimetres unless marked (°) for angles.
