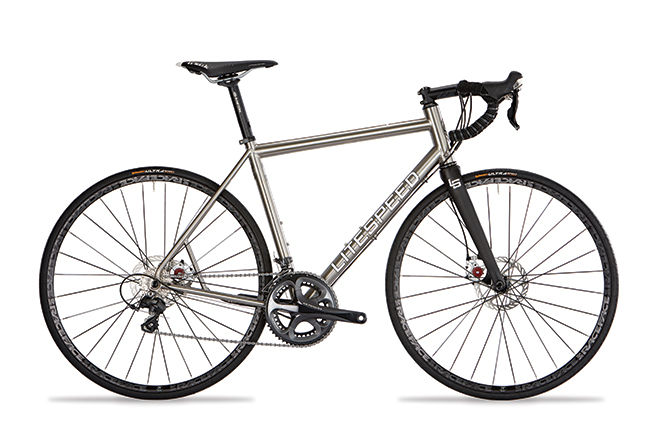

2015 Litespeed T5D MK I geometry
Full frame geometry for the 2015 Litespeed T5D MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 550 | 365 | 74 | 72.5 | 125 | 525 | 475 | 730 | 68 | 583 | 430 | 1004 | 52 | 51 |
| M | 570 | 370 | 73.5 | 73 | 145 | 540 | 495 | 747 | 71 | 600 | 430 | 1010 | 52 | 48 |
| ML | 590 | 380 | 73 | 73 | 170 | 560 | 515 | 767 | 71 | 604 | 430 | 1024 | 52 | 48 |
| L | 620 | 382 | 73 | 73 | 195 | 570 | 535 | 789 | 71 | 615 | 430 | 1035 | 52 | 48 |
| XL | 645 | 389 | 72.5 | 73 | 220 | 590 | 555 | 814 | 74 | 622 | 430 | 1044 | 52 | 48 |
All measurements in millimetres unless marked (°) for angles.
