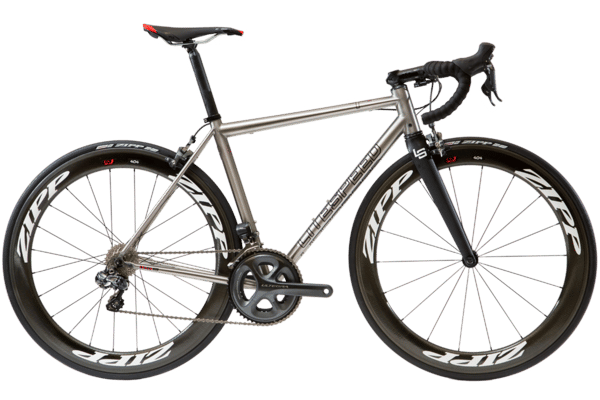

2017 Litespeed T2 geometry
Full frame geometry for the 2017 Litespeed T2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 370 | 74 | 72 | 101 | 515 | 455 | 716 | 71 | 566 | 406 | 962 | 45 |
| S | 530 | 375 | 74 | 72.5 | 115 | 525 | 475 | 734 | 71 | 571 | 406 | 967 | 45 |
| M | 545 | 380 | 73.5 | 73 | 129 | 540 | 495 | 752 | 71 | 576 | 406 | 972 | 45 |
| ML | 565 | 390 | 73 | 73 | 150 | 560 | 415 | 772 | 71 | 592 | 406 | 988 | 45 |
| L | 590 | 395 | 73 | 73 | 176 | 575 | 535 | 795 | 71 | 605 | 406 | 1001 | 45 |
| XL | 620 | 400 | 73 | 73 | 207 | 590 | 555 | 820 | 71 | 619 | 406 | 1015 | 45 |
All measurements in millimetres unless marked (°) for angles.
