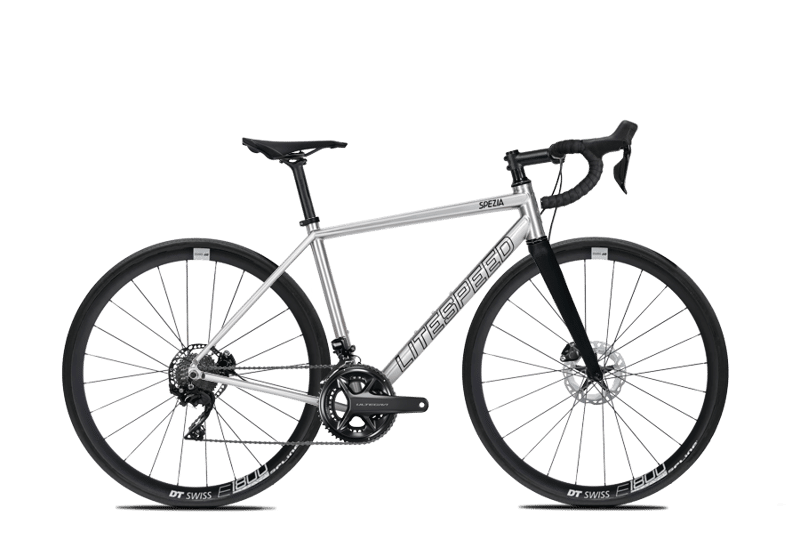

2023 Litespeed Spezia geometry
Full frame geometry for the 2023 Litespeed Spezia, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 370 | 74.5 | 72 | 106 | 514 | 430 | 696 | 71 | 568 | 415 | 972 | 45 |
| S | 535 | 375 | 74 | 72.5 | 119 | 528 | 450 | 715 | 71 | 573 | 415 | 977 | 45 |
| M | 555 | 380 | 73.5 | 73 | 139 | 544 | 480 | 750 | 71 | 579 | 415 | 984 | 45 |
| ML | 580 | 390 | 73.5 | 73 | 165 | 562 | 510 | 770 | 71 | 597 | 415 | 1002 | 45 |
| L | 610 | 395 | 73.3 | 73 | 196 | 579 | 540 | 800 | 71 | 611 | 415 | 1016 | 45 |
| XL | 640 | 400 | 73 | 73 | 231 | 596 | 570 | 835 | 68 | 622 | 415 | 1031 | 45 |
All measurements in millimetres unless marked (°) for angles.
