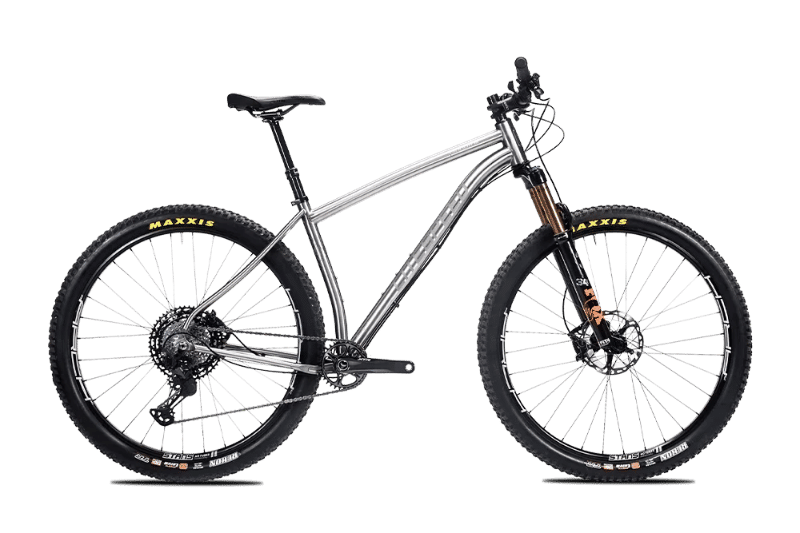

2021 Litespeed Pinhoti III geometry
Full frame geometry for the 2021 Litespeed Pinhoti III, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 600 | 400 | 74.5 | 67 | 101 | 566 | 356 | 699 | 57.1 | 68.1 | 429 | 1100 | 4.4 |
| S | 635 | 410 | 74.5 | 67 | 104 | 587 | 356 | 714 | 57.1 | 70.6 | 429 | 1130 | 4.4 |
| M | 640 | 435 | 74 | 67.5 | 107 | 620 | 406 | 757 | 57.1 | 72.6 | 429 | 1150 | 4.4 |
| L | 650 | 460 | 74 | 67.5 | 119 | 648 | 457 | 800 | 57.1 | 75.4 | 429 | 1180 | 4.4 |
| XL | 660 | 485 | 73.5 | 67.5 | 130 | 681 | 508 | 841 | 57.1 | 78.5 | 429 | 1210 | 4.4 |
All measurements in millimetres unless marked (°) for angles.
