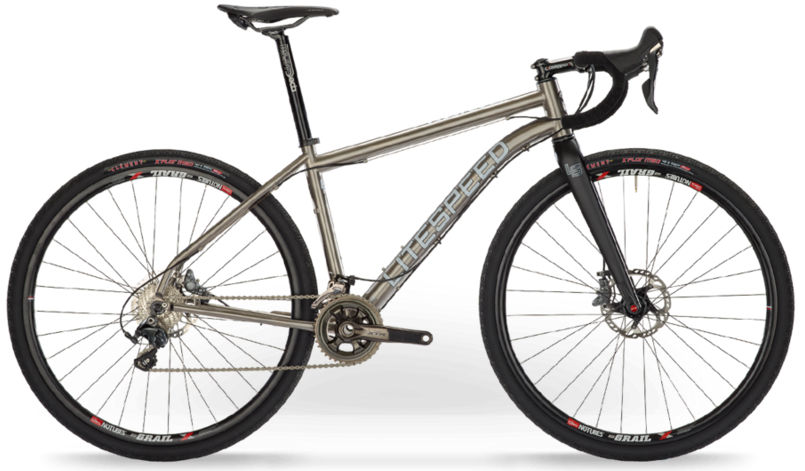

2016 Litespeed ku:wa geometry
Full frame geometry for the 2016 Litespeed ku:wa, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 565 | 385 | 74.5 | 71 | 114 | 545 | 735 | 616 | 1046 | 50 |
| XS | 565 | 370 | 74.5 | 71 | 114 | 530 | 704 | 596 | 1027 | 50 |
| M | 575 | 420 | 74.5 | 71 | 127 | 585 | 772 | 654 | 1092 | 50 |
| L | 600 | 450 | 74.5 | 71 | 152 | 620 | 820 | 695 | 1118 | 50 |
All measurements in millimetres unless marked (°) for angles.
