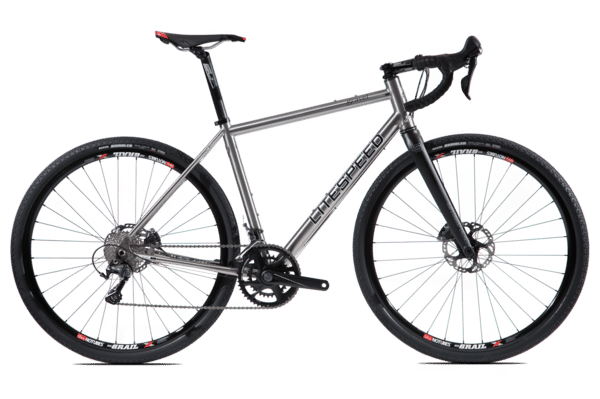

2018 Litespeed Gravel geometry
Full frame geometry for the 2018 Litespeed Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 550 | 370 | 74.5 | 71 | 111 | 525 | 475 | 759 | 71 | 592 | 430 | 1012 | 50 |
| M | 565 | 377 | 74.5 | 71.5 | 125 | 535 | 495 | 772 | 71 | 599 | 430 | 1019 | 50 |
| ML | 585 | 386 | 74 | 72 | 144 | 555 | 515 | 793 | 71 | 610 | 430 | 1030 | 50 |
| L | 610 | 390 | 73.5 | 72.5 | 168 | 570 | 535 | 815 | 71 | 617 | 430 | 1037 | 50 |
| XL | 640 | 393 | 73 | 72.5 | 196 | 590 | 555 | 837 | 74 | 628 | 430 | 1047 | 50 |
All measurements in millimetres unless marked (°) for angles.
