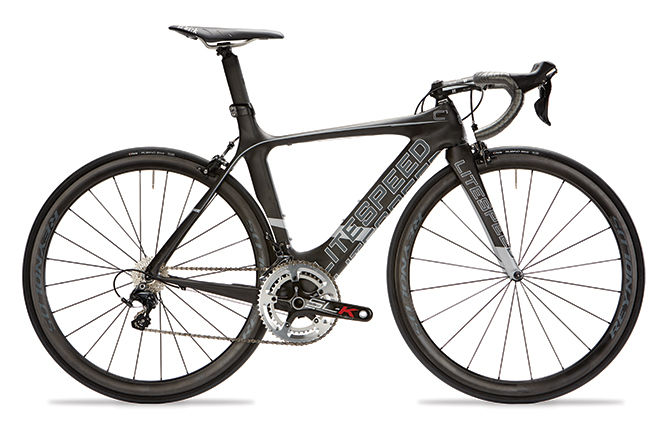

2015 Litespeed C-Series geometry
Full frame geometry for the 2015 Litespeed C-Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 517 | 378 | 74 | 72.5 | 110 | 525 | 525 | 724 | 67 | 568 | 395 | 953 | 43 | 60 |
| M | 538 | 381 | 73.5 | 73 | 130 | 540 | 540 | 751 | 67 | 573 | 395 | 958 | 43 | 57 |
| ML | 567 | 387 | 73 | 73 | 160 | 560 | 560 | 779 | 68 | 588 | 395 | 974 | 43 | 57 |
| L | 591 | 389 | 73 | 73 | 185 | 570 | 570 | 798 | 68 | 598 | 395 | 983 | 43 | 57 |
| XL | 616 | 402 | 73 | 73.5 | 210 | 590 | 610 | 812 | 68 | 613 | 395 | 997 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
