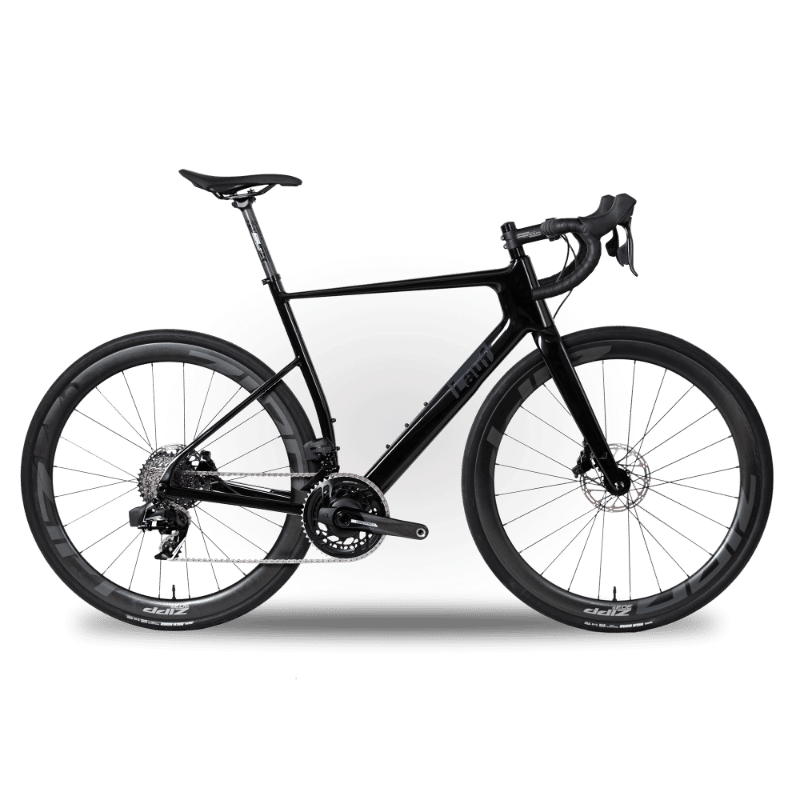

2025 Lauf Uthald geometry
Full frame geometry for the 2025 Lauf Uthald, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 514 | 373 | 73 | 71.5 | 105 | 492 | 720 | 73 | 572 | 405 | 970 | 48 | 64 |
| S | 537 | 378 | 72.8 | 71.5 | 130 | 529 | 753 | 73 | 585 | 405 | 983 | 48 | 64 |
| M | 564 | 389 | 72.6 | 71.5 | 158 | 556 | 779 | 73 | 605 | 405 | 1003 | 48 | 64 |
| L | 593 | 400 | 72.5 | 71.5 | 189 | 585 | 808 | 73 | 625 | 405 | 1023 | 48 | 64 |
| XL | 623 | 411 | 72.4 | 71.5 | 220 | 611 | 835 | 73 | 646 | 405 | 1044 | 48 | 64 |
All measurements in millimetres unless marked (°) for angles.
