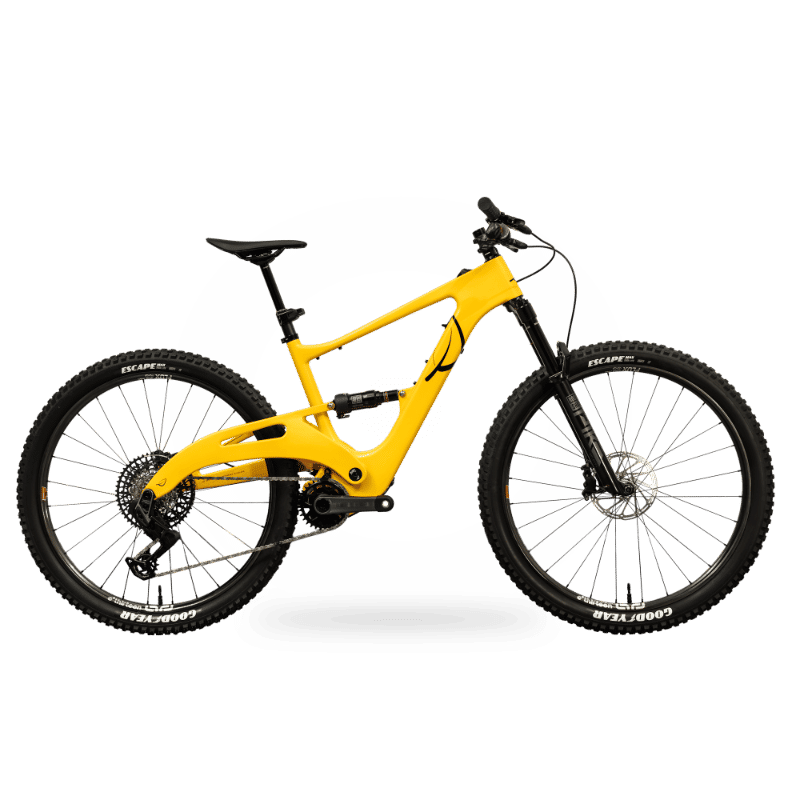

2025 Lauf eElja geometry
Full frame geometry for the 2025 Lauf eElja, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 416 | 76.8 | 65.1 | 104 | 423 | 736 | 33 | 732 | 448 | 1178 | 44 |
| M | 619 | 446 | 76.3 | 65.1 | 115 | 443 | 751 | 33 | 767 | 448 | 1213 | 44 |
| L | 630 | 475 | 75.7 | 65.1 | 126 | 453 | 762 | 33 | 802 | 448 | 1248 | 44 |
| XL | 640 | 502 | 75.3 | 65.1 | 137 | 463 | 771 | 33 | 833 | 448 | 1280 | 44 |
All measurements in millimetres unless marked (°) for angles.
