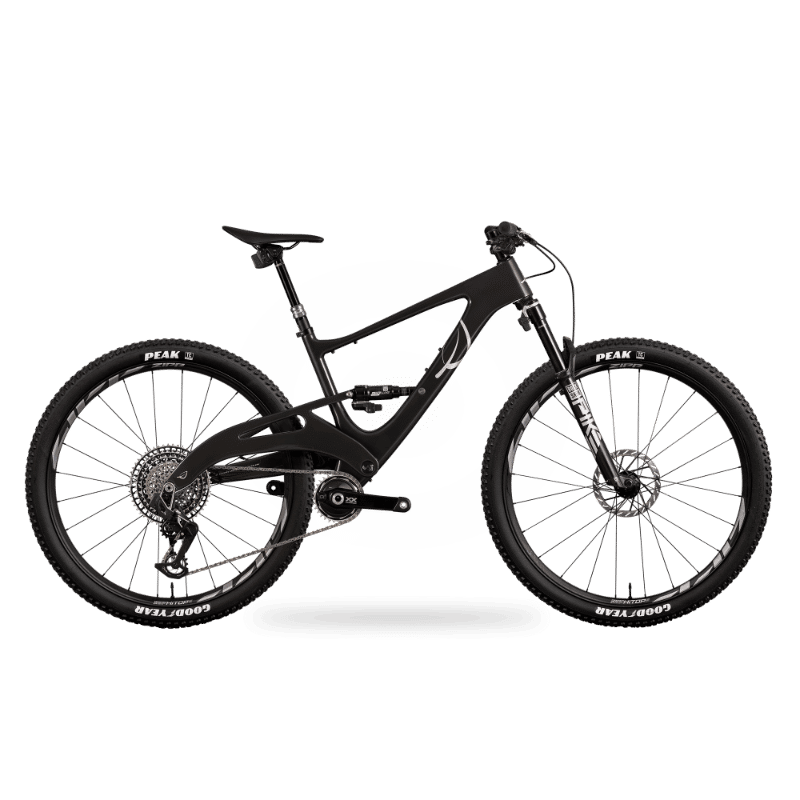

2025 Lauf Elja geometry
Full frame geometry for the 2025 Lauf Elja, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 415 | 77.1 | 65.6 | 95 | 406 | 727 | 37 | 720 | 435 | 1153 | 44 |
| M | 608 | 445 | 76.4 | 65.6 | 106 | 443 | 750 | 37 | 754 | 435 | 1187 | 44 |
| L | 619 | 476 | 75.8 | 65.6 | 117 | 453 | 759 | 37 | 789 | 435 | 1222 | 44 |
| XL | 628 | 503 | 75.3 | 65.6 | 127 | 463 | 768 | 37 | 820 | 435 | 1253 | 44 |
All measurements in millimetres unless marked (°) for angles.
