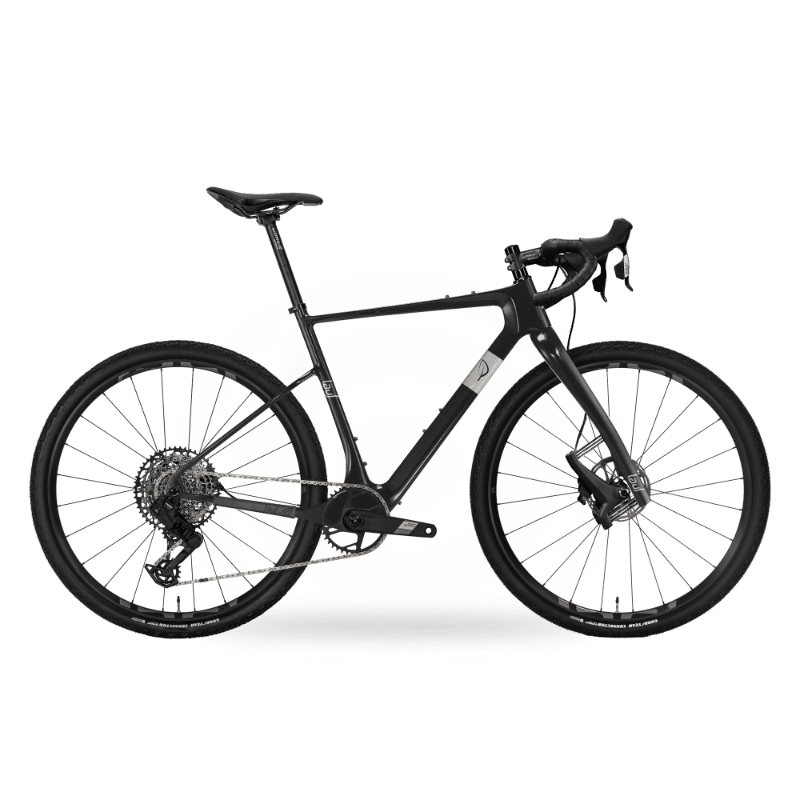

2025 Lauf Seigla geometry
Full frame geometry for the 2025 Lauf Seigla, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 523 | 378 | 72.9 | 70.5 | 84 | 532 | 461 | 731 | 65 | 589 | 425 | 1009 | 47 |
| S | 537 | 383 | 72.7 | 70.5 | 99 | 544 | 500 | 763 | 65 | 600 | 425 | 1020 | 47 |
| M | 564 | 394 | 72.5 | 70.5 | 129 | 563 | 528 | 789 | 65 | 620 | 425 | 1040 | 47 |
| L | 593 | 405 | 72.4 | 70.5 | 159 | 584 | 548 | 811 | 65 | 641 | 425 | 1061 | 47 |
| XL | 623 | 416 | 72.3 | 70.5 | 191 | 607 | 575 | 840 | 65 | 664 | 425 | 1084 | 47 |
All measurements in millimetres unless marked (°) for angles.
