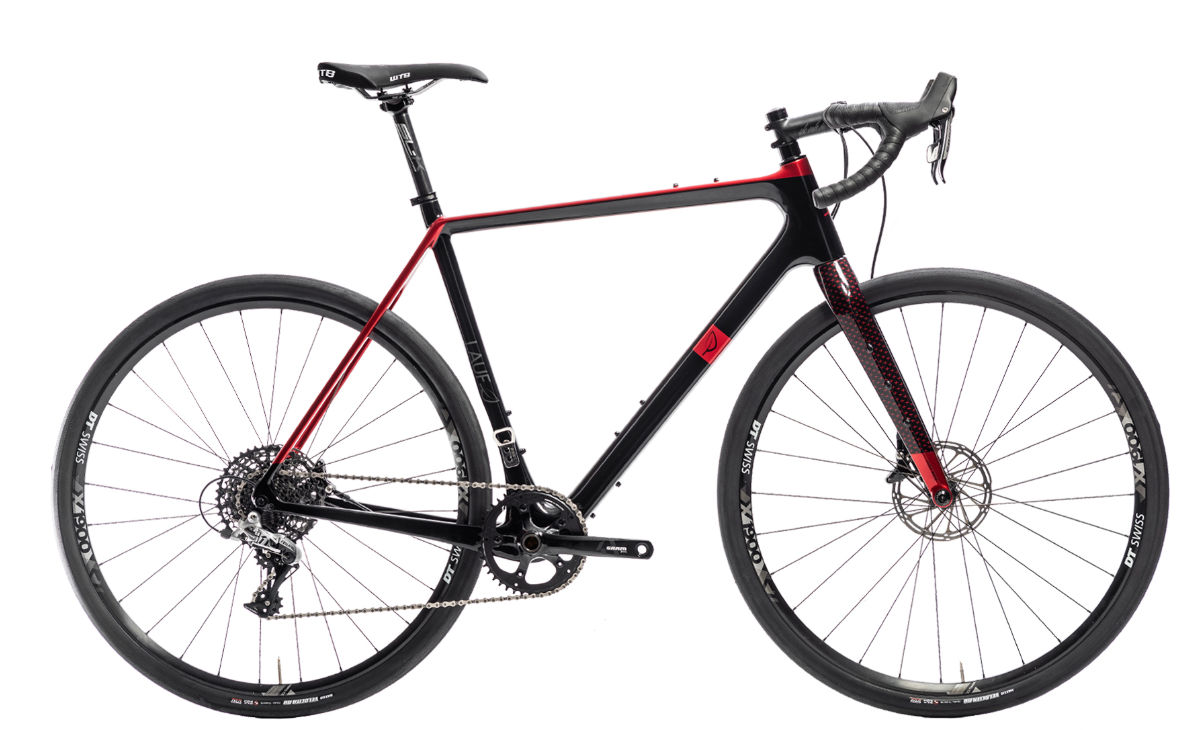

2019 Lauf Anywhere geometry
Full frame geometry for the 2019 Lauf Anywhere, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 | 382 | 73 | 71 | 92 | 541 | 480 | 729 | 68 | 589 | 425 | 1004 | 45 |
| S | 531 | 387 | 73 | 71 | 105 | 550 | 520 | 761 | 68 | 598 | 425 | 1014 | 45 |
| M | 558 | 399 | 73 | 71 | 133 | 569 | 542 | 784 | 68 | 619 | 425 | 1034 | 45 |
| L | 587 | 409 | 73 | 71 | 164 | 588 | 565 | 807 | 68 | 640 | 425 | 1056 | 45 |
| XL | 617 | 421 | 73 | 71 | 194 | 610 | 595 | 838 | 68 | 661 | 425 | 1077 | 45 |
All measurements in millimetres unless marked (°) for angles.
