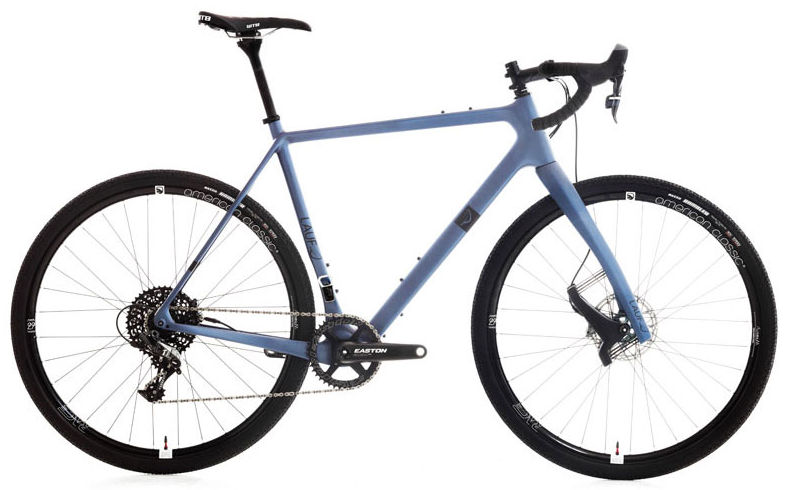

2018 Lauf True Grit geometry
Full frame geometry for the 2018 Lauf True Grit, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 378 | 72.5 | 70.5 | 90 | 542 | 480 | 731 | 65 | 593 | 425 | 1009 | 47 | 76 |
| S | 534 | 383 | 72.5 | 70.5 | 105 | 551 | 520 | 763 | 65 | 614 | 425 | 1020 | 47 | 76 |
| M | 561 | 394 | 72.5 | 70.5 | 133 | 571 | 542 | 786 | 65 | 625 | 425 | 1040 | 47 | 76 |
| L | 590 | 405 | 72.5 | 70.5 | 164 | 591 | 565 | 810 | 65 | 636 | 425 | 1061 | 47 | 76 |
| XL | 620 | 416 | 72.5 | 70.5 | 196 | 611 | 595 | 840 | 65 | 667 | 425 | 1084 | 47 | 76 |
All measurements in millimetres unless marked (°) for angles.
