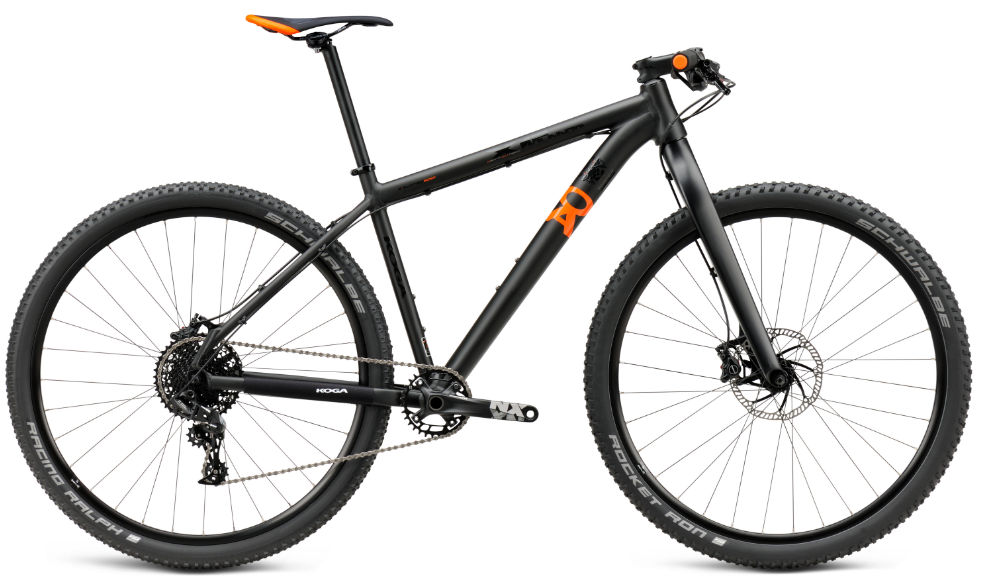

2016 Koga X29-Runner geometry
Full frame geometry for the 2016 Koga X29-Runner, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 590 | 413 | 73.5 | 71 | 110 | 588 | 824 | 50 | 445 | 1088 | 45 | 80 |
| 51 | 599 | 431 | 73.5 | 71 | 120 | 609 | 832 | 50 | 445 | 1109 | 45 | 80 |
| 56 | 609 | 450 | 73.5 | 71 | 130 | 630 | 841 | 50 | 445 | 1131 | 45 | 80 |
All measurements in millimetres unless marked (°) for angles.
