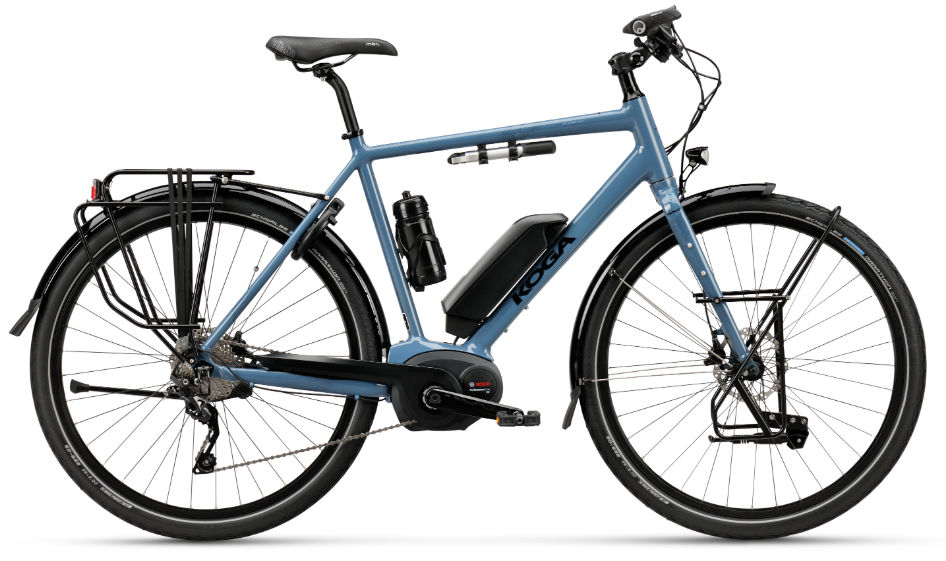

2019 Koga E-Worldtraveller Herren geometry
Full frame geometry for the 2019 Koga E-Worldtraveller Herren, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 578 | 399 | 73.5 | 70 | 140 | 570 | 571 | 60 | 643 | 476 | 1113 | 50 | 73 |
| 54 | 592 | 405 | 73.5 | 70 | 155 | 580 | 578 | 60 | 654 | 476 | 1124 | 50 | 73 |
| 57 | 613 | 414 | 73 | 70.5 | 175 | 601 | 588 | 60 | 665 | 476 | 1135 | 50 | 69 |
| 60 | 632 | 405 | 72.5 | 70.5 | 195 | 604 | 598 | 60 | 663 | 476 | 1133 | 50 | 69 |
| 63 | 662 | 405 | 72 | 71 | 225 | 620 | 613 | 60 | 668 | 476 | 1138 | 50 | 66 |
All measurements in millimetres unless marked (°) for angles.
