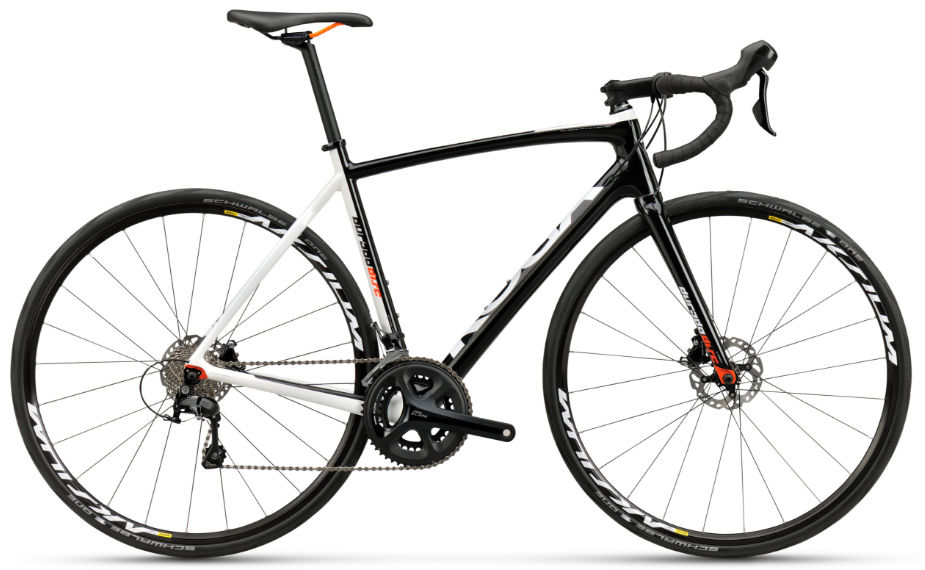

2016 Koga Durado geometry
Full frame geometry for the 2016 Koga Durado, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/46 | 514 | 375 | 74.5 | 71.5 | 120 | 520 | 752 | 67 | 415 | 980 | 43 | 97 |
| S/49 | 535 | 377 | 74 | 72 | 140 | 532 | 772 | 67 | 415 | 984 | 43 | 94 |
| M/52 | 556 | 376 | 73 | 72.5 | 160 | 547 | 792 | 67 | 415 | 985 | 43 | 91 |
| L/55 | 577 | 384 | 72.5 | 73 | 180 | 565 | 812 | 67 | 415 | 994 | 43 | 58 |
| XL/59 | 596 | 392 | 72 | 73 | 200 | 585 | 830 | 67 | 415 | 1008 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
