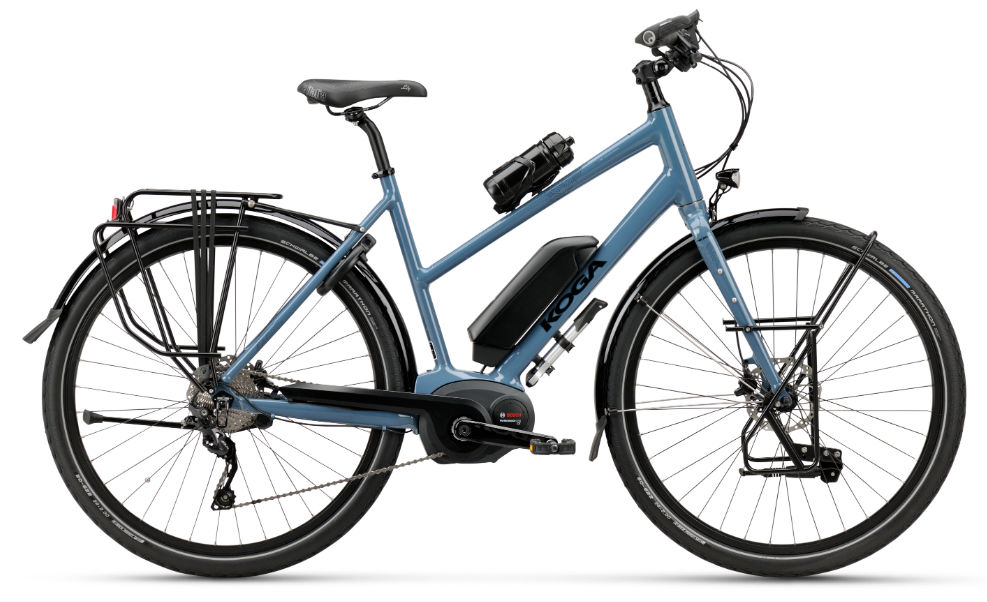

2019 Koga E-Worldtraveller Damen geometry
Full frame geometry for the 2019 Koga E-Worldtraveller Damen, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 611 | 385 | 73.5 | 70 | 175 | 566 | 587 | 60 | 642 | 476 | 1112 | 50 | 73 |
| 50 | 620 | 390 | 73.5 | 70 | 185 | 574 | 592 | 60 | 650 | 476 | 1120 | 50 | 73 |
| 53 | 632 | 390 | 73 | 70.5 | 195 | 583 | 598 | 60 | 648 | 476 | 1118 | 50 | 69 |
| 56 | 641 | 394 | 73 | 70.5 | 205 | 590 | 602 | 60 | 655 | 476 | 1125 | 50 | 69 |
| 59 | 653 | 394 | 72.5 | 71 | 215 | 600 | 608 | 60 | 654 | 476 | 1124 | 50 | 66 |
All measurements in millimetres unless marked (°) for angles.
