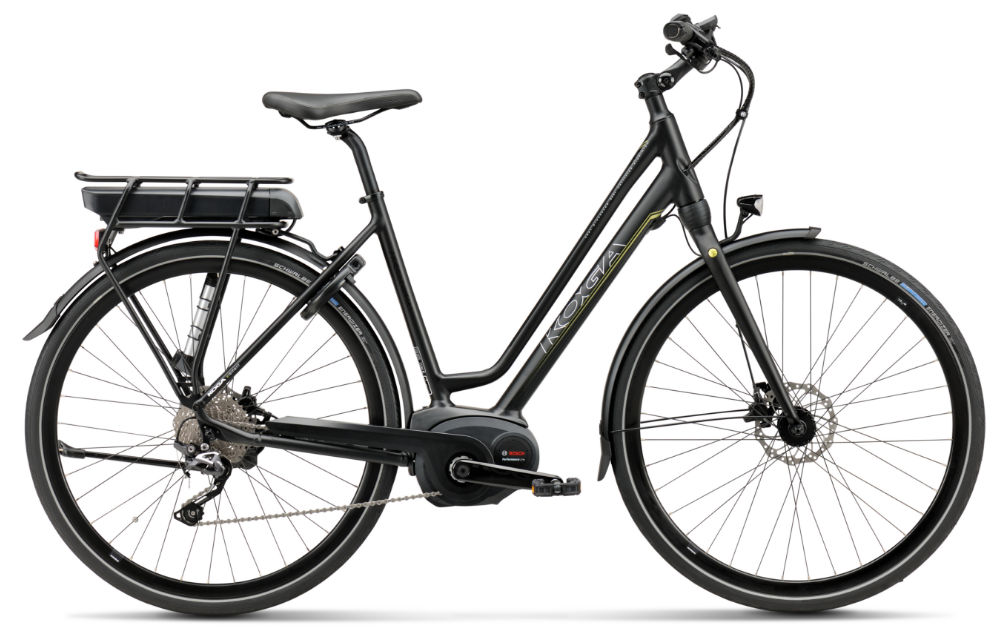

2016 Koga E-Lement Womens geometry
Full frame geometry for the 2016 Koga E-Lement Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 618 | 365 | 72 | 70.5 | 140 | 566 | 853 | 69 | 467 | 1069 | 45 | 75 |
| 50 | 627 | 372 | 72 | 70.5 | 150 | 573 | 862 | 69 | 467 | 1076 | 45 | 75 |
| 53 | 637 | 373 | 72 | 70.5 | 160 | 580 | 872 | 69 | 467 | 1083 | 45 | 75 |
| 56 | 650 | 363 | 71 | 71.5 | 170 | 587 | 884 | 69 | 467 | 1067 | 45 | 68 |
| 59 | 658 | 369 | 71 | 71.5 | 185 | 594 | 892 | 69 | 467 | 1074 | 45 | 68 |
All measurements in millimetres unless marked (°) for angles.
