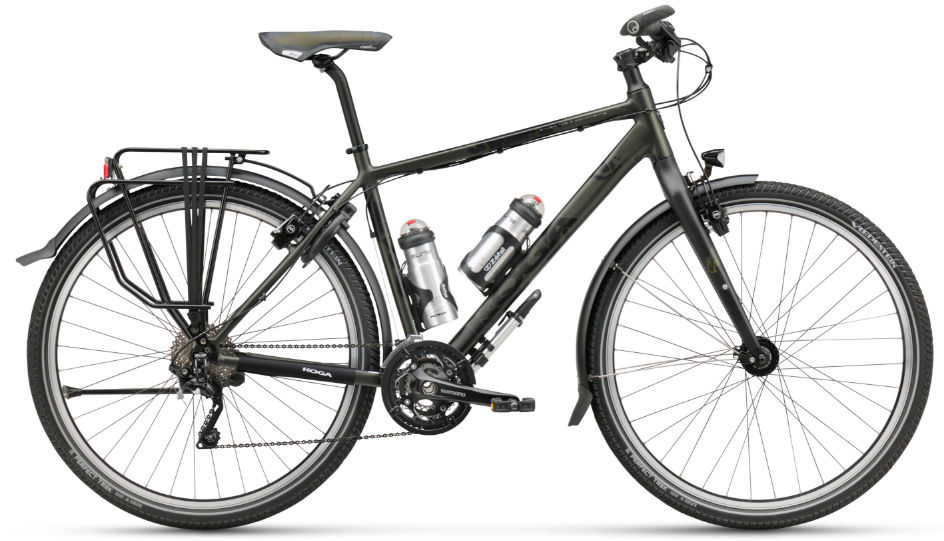

2016 Koga Worldtraveller29 geometry
Full frame geometry for the 2016 Koga Worldtraveller29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 595 | 411 | 73.5 | 70 | 120 | 587 | 829 | 60 | 462 | 1117 | 50 | 73 |
| 51 | 604 | 429 | 73.5 | 70 | 130 | 608 | 837 | 60 | 462 | 1139 | 50 | 73 |
| 56 | 614 | 449 | 73.5 | 70 | 140 | 631 | 846 | 60 | 462 | 1162 | 50 | 73 |
All measurements in millimetres unless marked (°) for angles.
