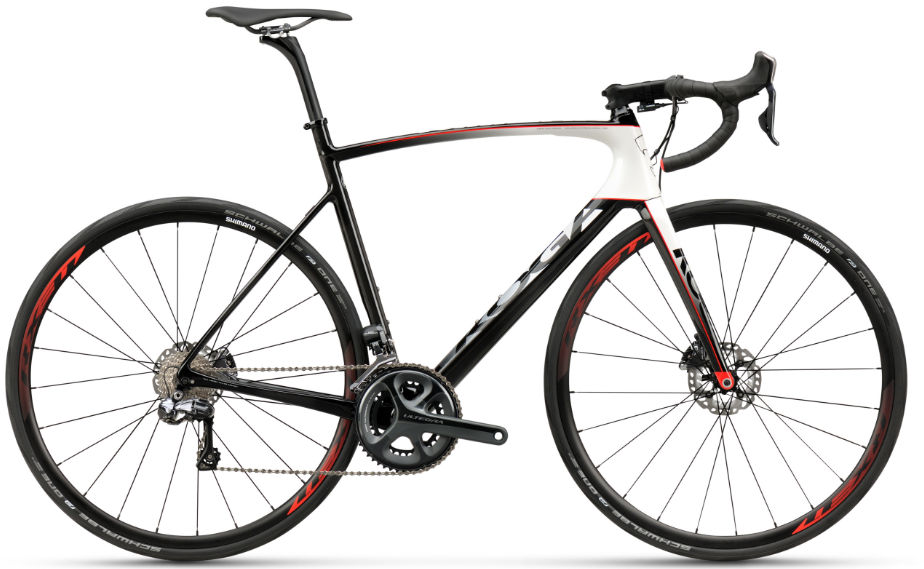

2016 Koga Kimera Disc geometry
Full frame geometry for the 2016 Koga Kimera Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 524 | 386 | 74 | 72 | 125 | 536 | 761 | 70 | 415 | 988 | 43 | 63 |
| 54 | 540 | 396 | 74 | 72.5 | 140 | 551 | 776 | 70 | 415 | 999 | 43 | 60 |
| 56 | 556 | 401 | 73 | 73 | 155 | 571 | 791 | 70 | 415 | 1005 | 43 | 57 |
| 58 | 566 | 402 | 73 | 73 | 165 | 574 | 801 | 70 | 415 | 1008 | 43 | 57 |
| 60 | 585 | 411 | 73 | 73 | 185 | 590 | 819 | 70 | 415 | 1023 | 43 | 57 |
| 63 | 613 | 417 | 73 | 73 | 215 | 605 | 846 | 70 | 415 | 1038 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
