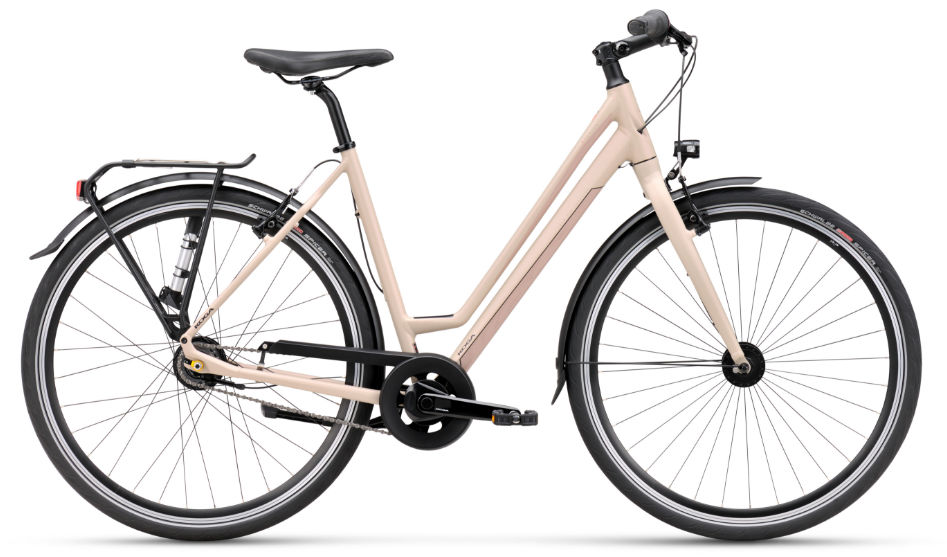

2016 Koga F3 Womens geometry
Full frame geometry for the 2016 Koga F3 Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 606 | 369 | 72 | 70.5 | 135 | 566 | 841 | 69 | 457 | 1065 | 45 | 75 |
| 50 | 615 | 373 | 72 | 70.5 | 145 | 573 | 850 | 69 | 457 | 1073 | 45 | 75 |
| 53 | 625 | 377 | 72 | 70.5 | 155 | 580 | 860 | 69 | 457 | 1080 | 45 | 75 |
| 56 | 638 | 367 | 71 | 71.5 | 165 | 587 | 872 | 69 | 457 | 1057 | 45 | 68 |
| 59 | 653 | 369 | 71 | 71.5 | 180 | 594 | 887 | 69 | 457 | 1064 | 45 | 68 |
All measurements in millimetres unless marked (°) for angles.
