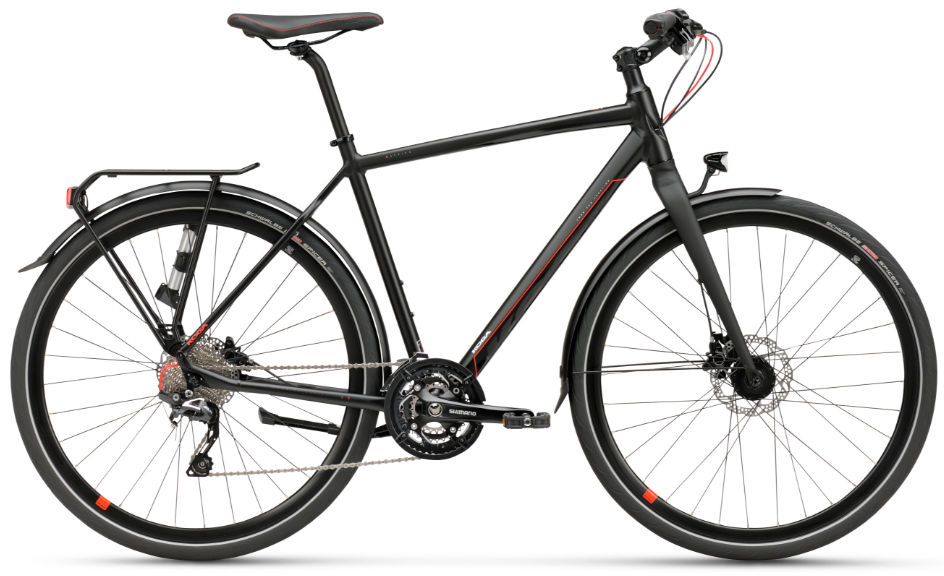

2016 Koga F3 Disc Mens geometry
Full frame geometry for the 2016 Koga F3 Disc Mens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 572 | 389 | 72 | 70.5 | 115 | 575 | 807 | 55 | 457 | 1074 | 45 | 75 |
| 54 | 595 | 385 | 71 | 71.5 | 135 | 590 | 829 | 55 | 457 | 1067 | 45 | 68 |
| 57 | 614 | 394 | 71 | 71.5 | 155 | 605 | 847 | 55 | 457 | 1082 | 45 | 68 |
| 60 | 638 | 400 | 71 | 71.5 | 180 | 620 | 870 | 55 | 457 | 1097 | 45 | 68 |
| 63 | 667 | 405 | 71 | 71.5 | 210 | 635 | 899 | 55 | 457 | 1112 | 45 | 68 |
All measurements in millimetres unless marked (°) for angles.
