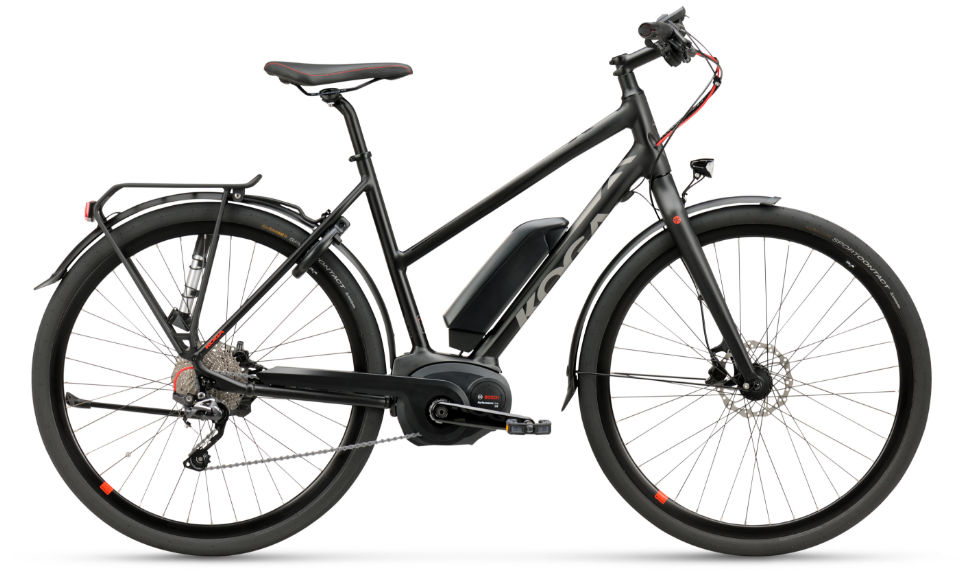

2016 Koga E-Xite Womens geometry
Full frame geometry for the 2016 Koga E-Xite Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 608 | 368 | 72 | 70.5 | 145 | 566 | 843 | 55 | 467 | 1075 | 45 | 75 |
| 50 | 617 | 372 | 72 | 70.5 | 155 | 573 | 852 | 55 | 467 | 1083 | 45 | 75 |
| 53 | 627 | 376 | 72 | 70.5 | 165 | 580 | 862 | 55 | 467 | 1089 | 45 | 75 |
| 56 | 641 | 366 | 71 | 71.5 | 175 | 587 | 875 | 55 | 467 | 1073 | 45 | 68 |
All measurements in millimetres unless marked (°) for angles.
