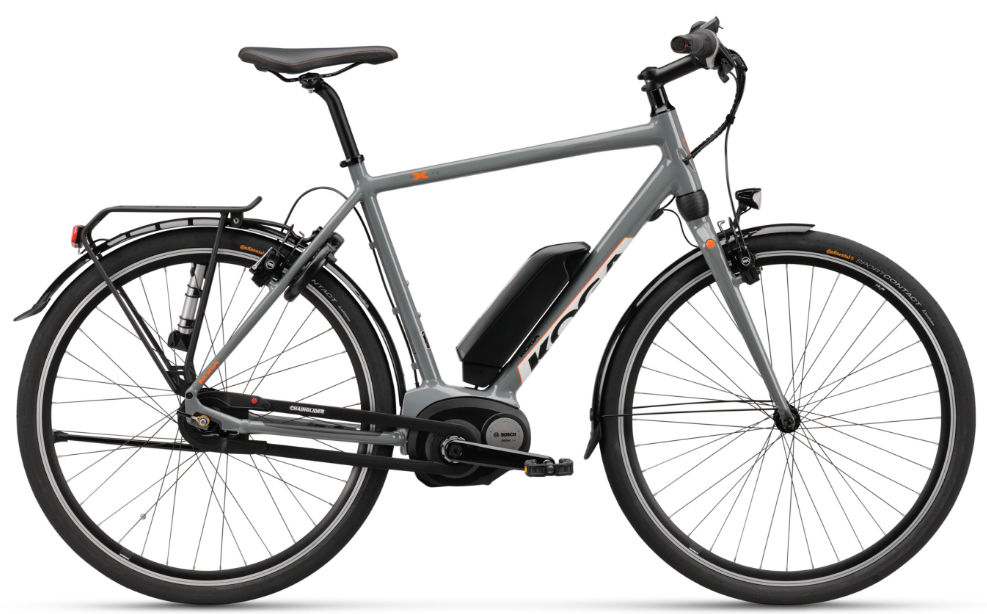

2016 Koga E-Xite N8 geometry
Full frame geometry for the 2016 Koga E-Xite N8, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54 | 603 | 381 | 71 | 71.5 | 135 | 590 | 837 | 55 | 467 | 1077 | 45 | 68 |
| 57 | 622 | 389 | 71 | 71.5 | 155 | 605 | 855 | 55 | 467 | 1092 | 45 | 68 |
| 60 | 646 | 396 | 71 | 71.5 | 180 | 620 | 878 | 55 | 467 | 1107 | 45 | 68 |
All measurements in millimetres unless marked (°) for angles.
