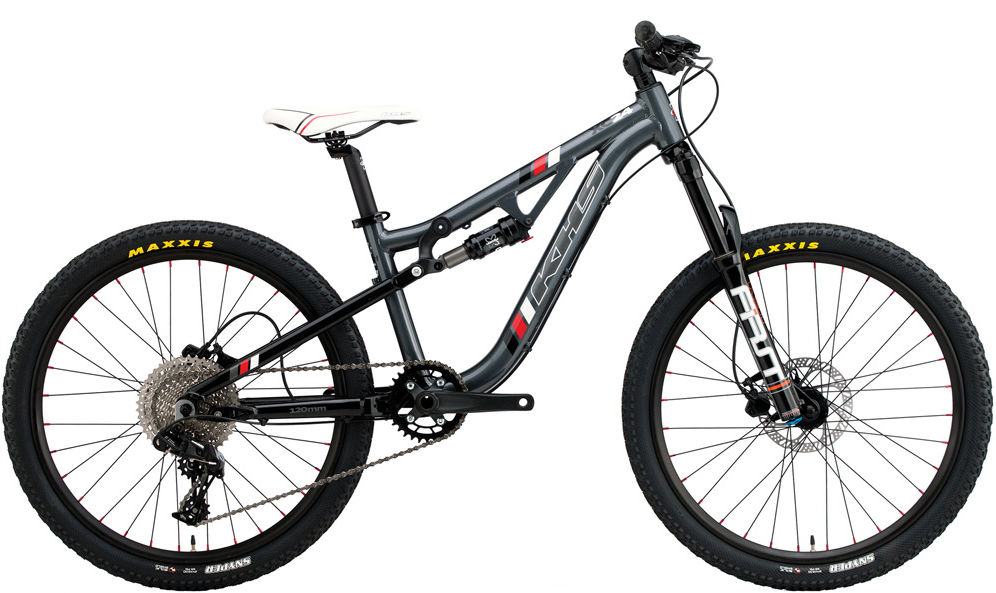

2018 KHS XC 24 geometry
Full frame geometry for the 2018 KHS XC 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 508 | 365 | 73 | 67 | 95 | 523 | 317 | 390 |
All measurements in millimetres unless marked (°) for angles.
