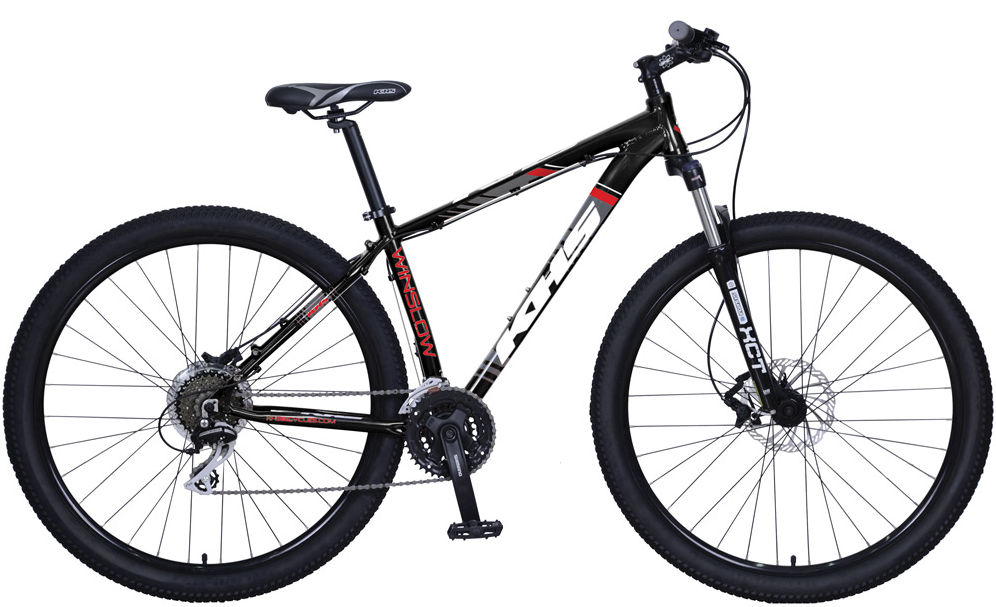

2018 KHS Winslow / Zaca geometry
Full frame geometry for the 2018 KHS Winslow / Zaca, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 612 | 404 | 75.1 | 67.5 | 90 | 591 | 381 | 725 | 435 |
| M | 616 | 424 | 73.6 | 67.5 | 95 | 612 | 432 | 752 | 435 |
| L | 626 | 449 | 73.3 | 67.5 | 105 | 635 | 483 | 783 | 435 |
| XL | 639 | 467 | 76.7 | 67.5 | 120 | 659 | 533 | 814 | 435 |
All measurements in millimetres unless marked (°) for angles.
