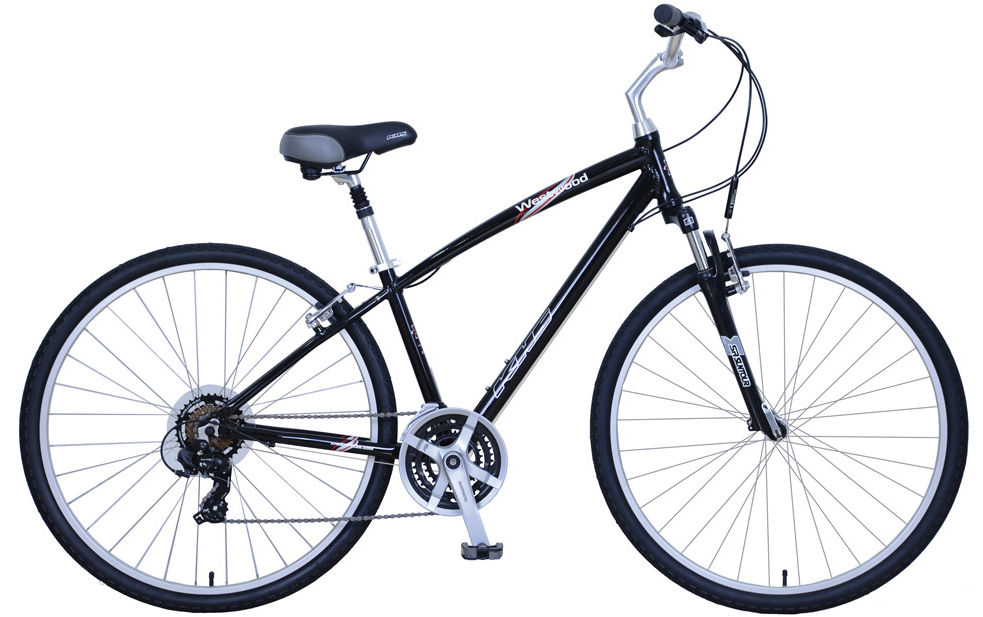

2018 KHS Westwood geometry
Full frame geometry for the 2018 KHS Westwood, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 370 | 71 | 70.5 | 127 | 580 | 350 | 780 | 465 |
| S-Low | 615 | 363 | 71 | 70.5 | 135 | 576 | 325 | — | 465 |
| M | 619 | 378 | 71 | 70.5 | 139 | 592 | 400 | 808 | 465 |
| L | 630 | 386 | 71 | 70.5 | 151 | 604 | 450 | 837 | 465 |
| ML | 630 | 373 | 71 | 70.5 | 150 | 590 | 400 | — | 465 |
| XL | 642 | 394 | 71 | 70.5 | 163 | 616 | 500 | — | 465 |
All measurements in millimetres unless marked (°) for angles.
