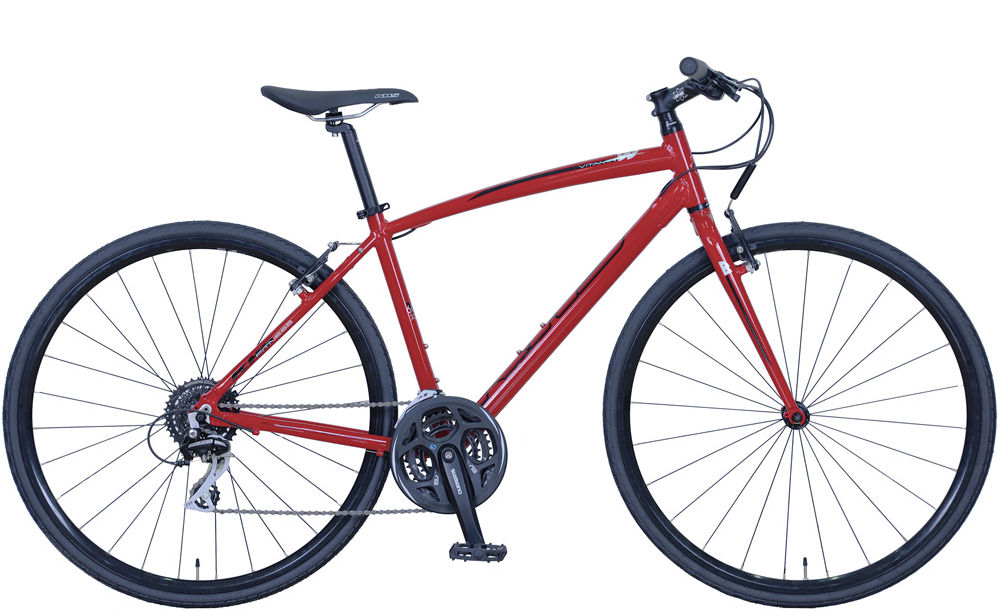

2018 KHS Vitamin B geometry
Full frame geometry for the 2018 KHS Vitamin B, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 540 | 385 | 73 | 71 | 105 | 550 | 330 | 440 |
| XS-Low | 540 | 385 | 73 | 71 | 105 | 550 | 330 | 440 |
| S | 550 | 390 | 73 | 71 | 115 | 558 | 394 | 440 |
| S-Low | 550 | 382 | 73 | 71 | 115 | 550 | 394 | 440 |
| M | 568 | 402 | 73 | 71 | 135 | 576 | 457 | 440 |
| L | 598 | 406 | 73 | 72 | 160 | 589 | 521 | 440 |
| XL | 626 | 410 | 73 | 72 | 190 | 602 | 584 | 440 |
All measurements in millimetres unless marked (°) for angles.
