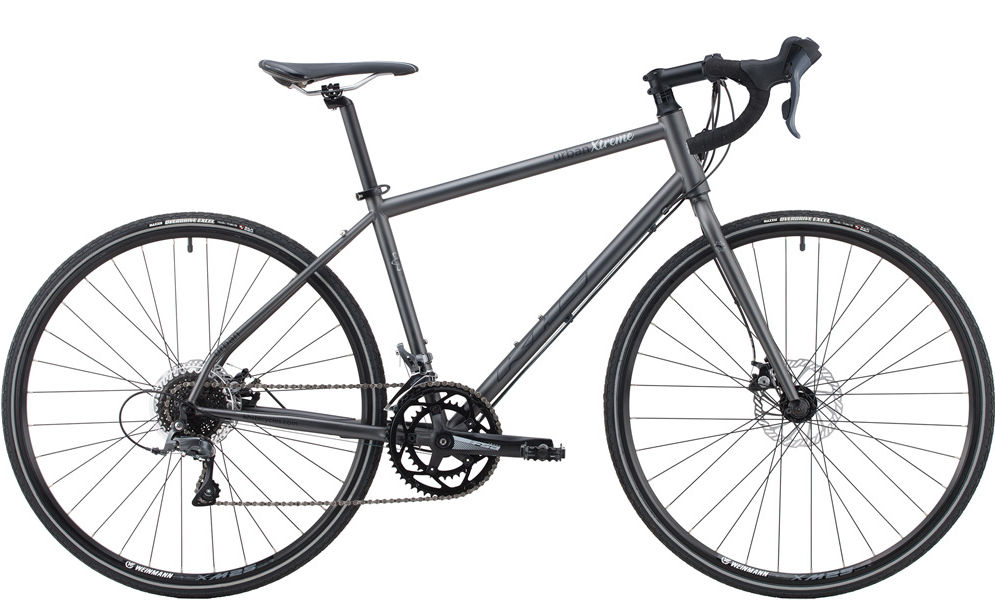

2018 KHS Urban Xtreme geometry
Full frame geometry for the 2018 KHS Urban Xtreme, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 547 | 361 | 73 | 71 | 135 | 533 | 495 | 787 | 432 |
| M | 582 | 380 | 73 | 72 | 150 | 558 | 534 | 810 | 432 |
| L | 601 | 396 | 73 | 72 | 175 | 580 | 572 | 840 | 432 |
| XL | 624 | 402 | 72 | 73 | 210 | 605 | 609 | 877 | 432 |
All measurements in millimetres unless marked (°) for angles.
