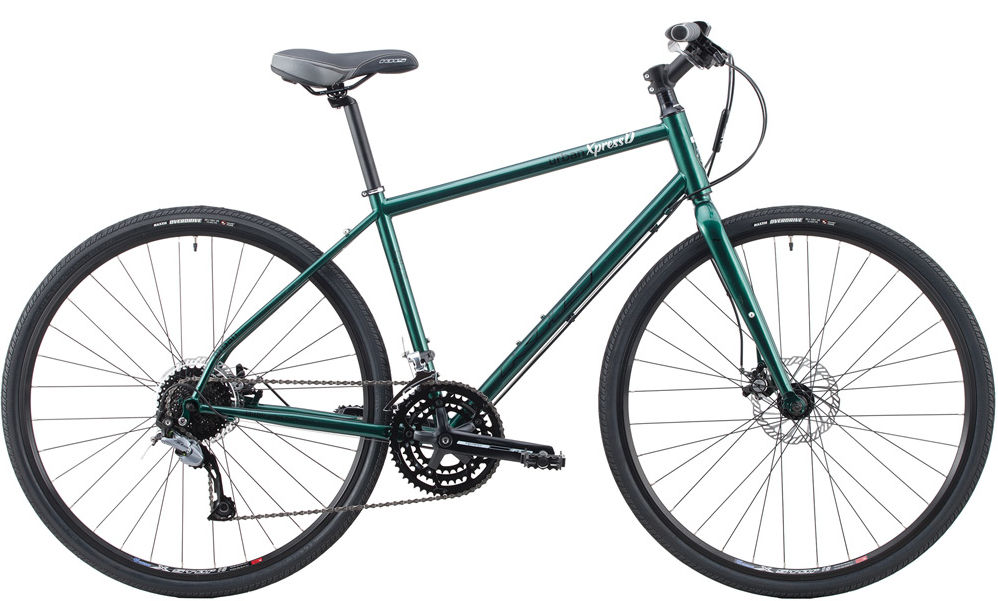

2018 KHS Urban Xpress Disc geometry
Full frame geometry for the 2018 KHS Urban Xpress Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 535 | 395 | 74 | 71 | 130 | 548 | 394 | 730 | 450 |
| M | 554 | 406 | 74 | 71 | 150 | 565 | 457 | 771 | 450 |
| L | 568 | 415 | 74 | 71 | 165 | 578 | 521 | 811 | 450 |
| XL | 587 | 422 | 74 | 71 | 185 | 590 | 584 | 851 | 450 |
All measurements in millimetres unless marked (°) for angles.
