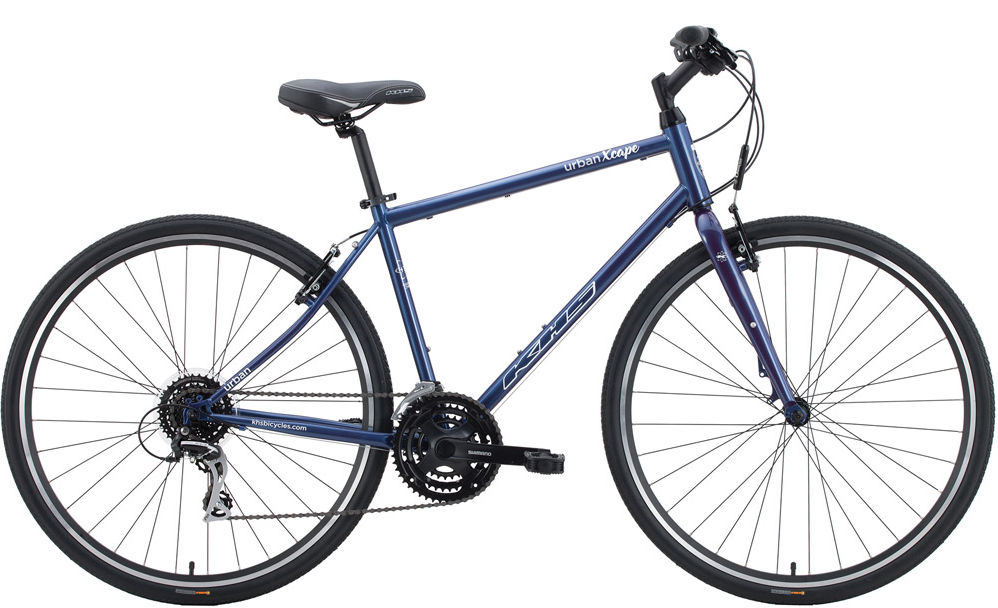

2018 KHS Urban Xcape geometry
Full frame geometry for the 2018 KHS Urban Xcape, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-Low | 536 | 394 | 74 | 71 | 115 | 548 | 394 | — | 450 |
| ML | 550 | 397 | 74 | 71 | 130 | 555 | 432 | — | 450 |
| S | 550 | 390 | 74 | 71 | 130 | 548 | 394 | 732 | 450 |
| M | 569 | 402 | 74 | 71 | 150 | 565 | 457 | 774 | 450 |
| L | 583 | 410 | 74 | 71 | 165 | 578 | 521 | 812 | 450 |
| XL | 602 | 417 | 74 | 71 | 185 | 590 | 584 | 853 | 450 |
| XXL | 621 | 423 | 74 | 71 | 205 | 602 | 635 | 887 | 450 |
All measurements in millimetres unless marked (°) for angles.
