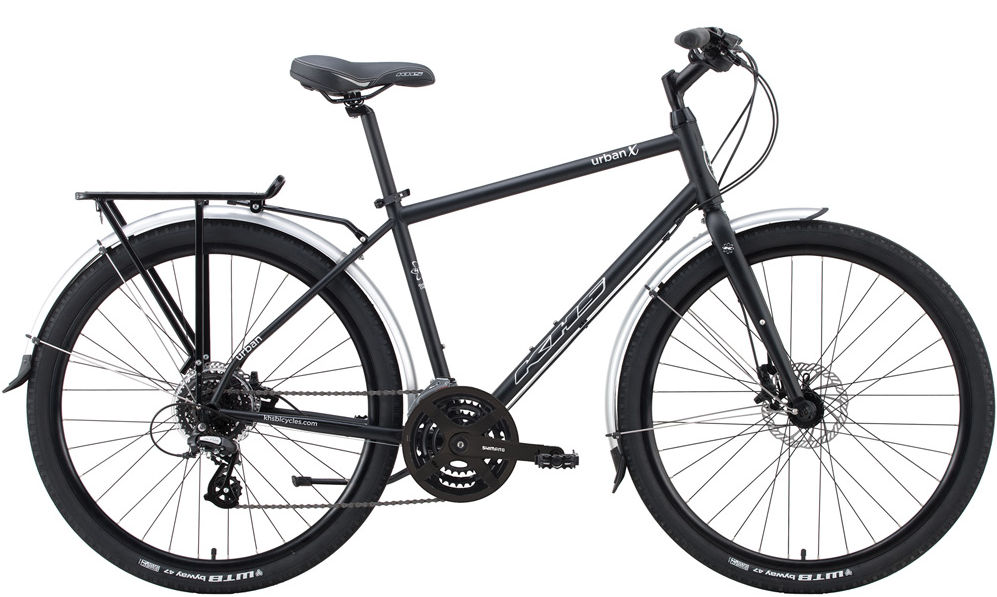

2018 KHS Urban X geometry
Full frame geometry for the 2018 KHS Urban X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 543 | 392 | 74 | 71 | 115 | 548 | 394 | 728 | 445 |
| M | 562 | 404 | 74 | 71 | 135 | 565 | 457 | 769 | 445 |
| L | 577 | 414 | 74 | 71 | 150 | 580 | 521 | 811 | 445 |
| XL | 595 | 419 | 74 | 71 | 170 | 589 | 584 | 850 | 445 |
All measurements in millimetres unless marked (°) for angles.
