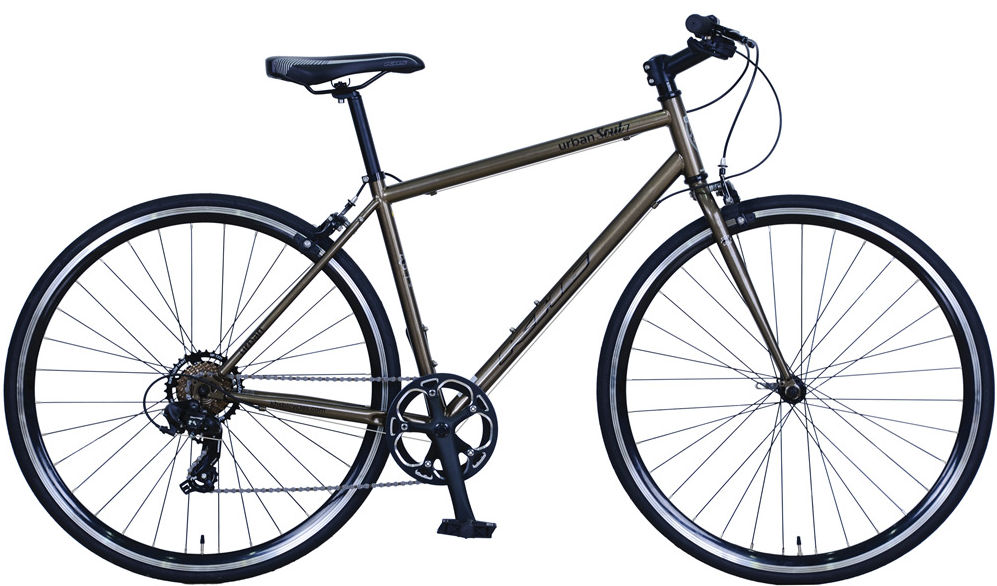

2018 KHS Urban Soul geometry
Full frame geometry for the 2018 KHS Urban Soul, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 533 | 387 | 75 | 72 | 115 | 525 | 394 | 704 | 415 |
| M | 551 | 393 | 75 | 72 | 140 | 555 | 457 | 745 | 415 |
| L | 580 | 403 | 73.5 | 72 | 165 | 575 | 521 | 792 | 415 |
| XL | 604 | 416 | 73.5 | 72 | 190 | 595 | 584 | 834 | 415 |
All measurements in millimetres unless marked (°) for angles.
