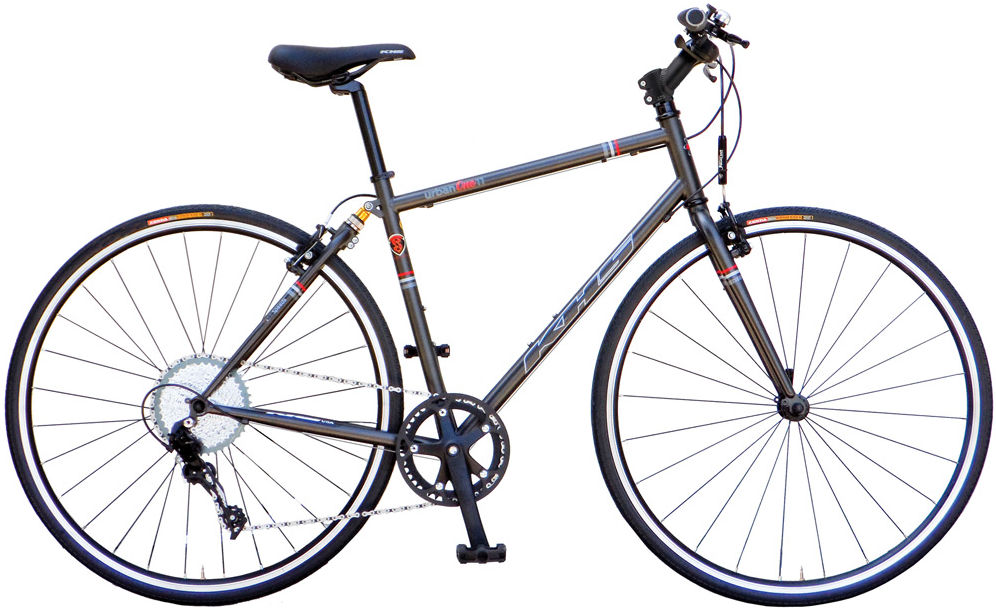

2018 KHS Urban One 11 geometry
Full frame geometry for the 2018 KHS Urban One 11, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 564 | 361 | 74 | 71.5 | 145 | 523 | 480 | 430 |
| M | 583 | 371 | 73.5 | 72.5 | 160 | 544 | 500 | 430 |
| L | 598 | 398 | 73.5 | 72.5 | 175 | 575 | 520 | 430 |
| XL | 612 | 419 | 73.5 | 72.5 | 190 | 600 | 540 | 430 |
All measurements in millimetres unless marked (°) for angles.
