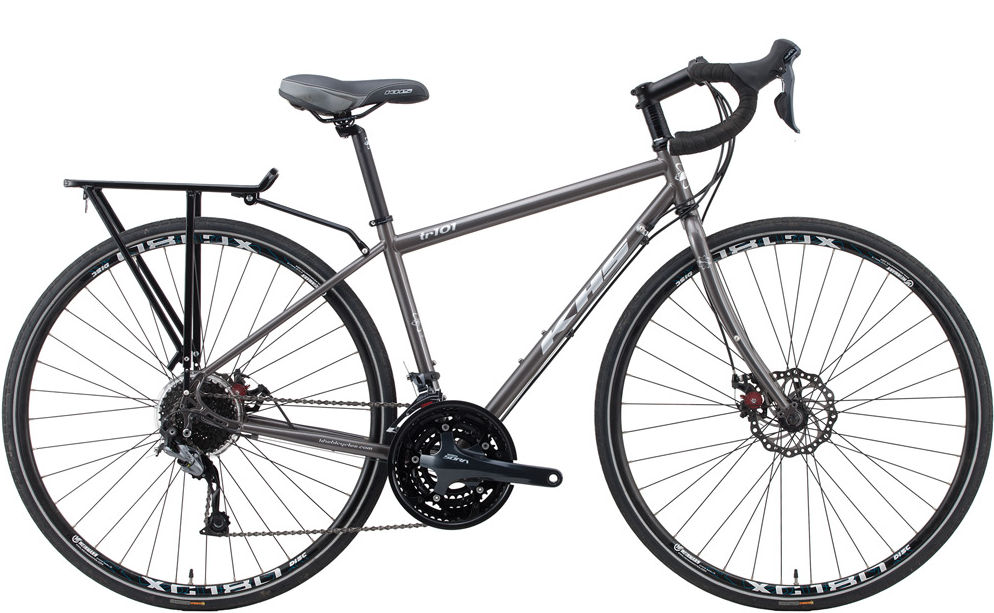

2018 KHS TR 101 geometry
Full frame geometry for the 2018 KHS TR 101, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 546 | 364 | 73.5 | 70.3 | 105 | 525 | 440 | 732 | 450 |
| S | 558 | 366 | 73 | 71 | 115 | 537 | 470 | 754 | 450 |
| M | 580 | 376 | 73 | 71.5 | 135 | 553 | 500 | 779 | 450 |
| L | 594 | 387 | 73 | 71.5 | 150 | 568 | 530 | 800 | 450 |
All measurements in millimetres unless marked (°) for angles.
