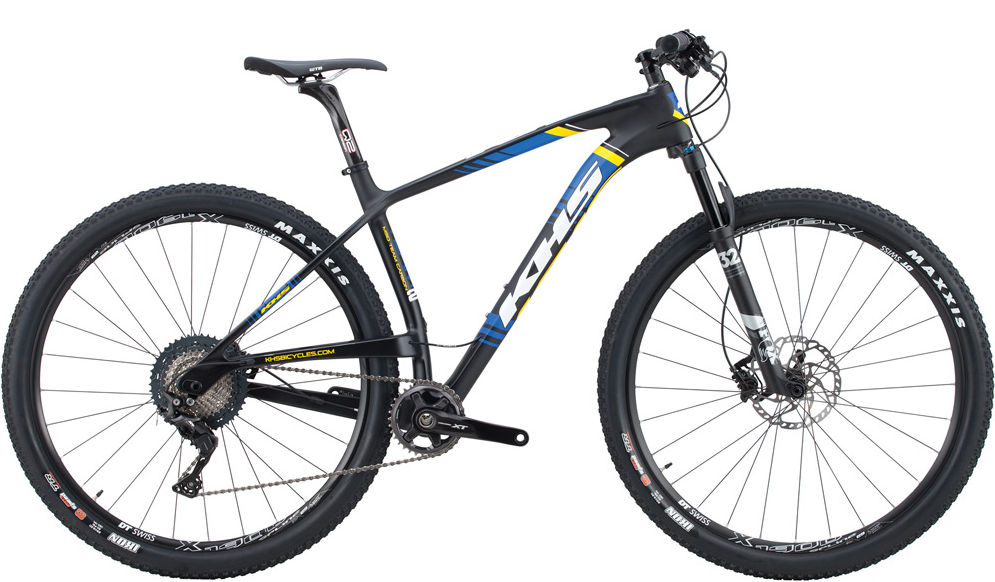

2018 KHS Team 29 / Tucson geometry
Full frame geometry for the 2018 KHS Team 29 / Tucson, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| M | 611 | 402 | 72.5 | 68.5 | 105 | 595 | 432 | 425 |
| L | 616 | 422 | 72.5 | 68.5 | 110 | 617 | 483 | 425 |
| XL | 621 | 443 | 72.5 | 68.5 | 115 | 639 | 541 | 425 |
All measurements in millimetres unless marked (°) for angles.
