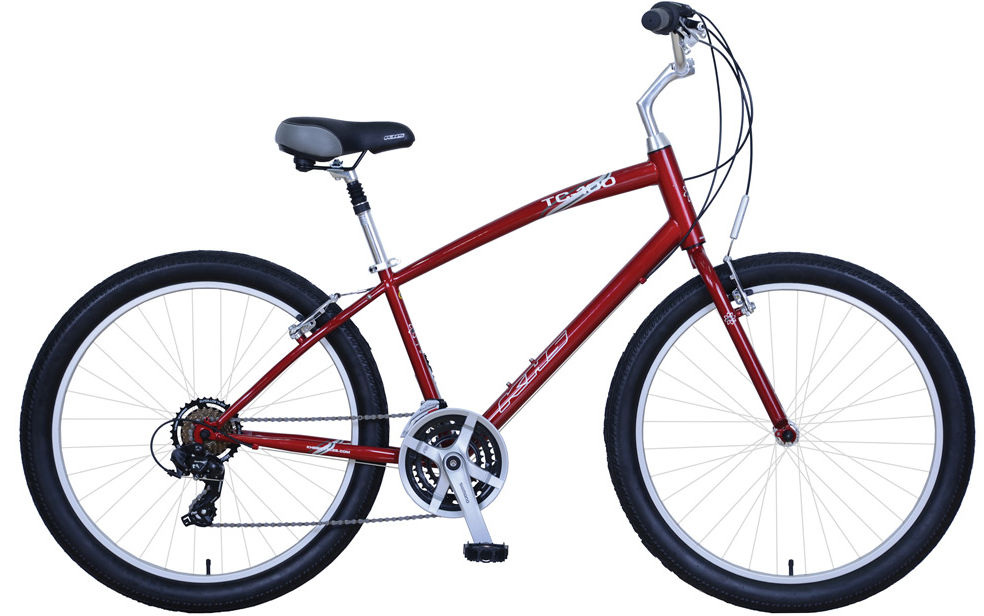

2018 KHS TC100 geometry
Full frame geometry for the 2018 KHS TC100, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 570 | 375 | 68.5 | 69 | 175 | 600 | 350 | 739 | 470 |
| M | 584 | 385 | 68.5 | 69 | 190 | 615 | 400 | 765 | 470 |
| L | 598 | 394 | 68.5 | 69 | 205 | 630 | 450 | 796 | 470 |
| S-Low | 598 | 364 | 68.5 | 69 | 205 | 600 | 375 | — | 470 |
| XL | 622 | 400 | 68.5 | 69 | 230 | 645 | 490 | 826 | 470 |
All measurements in millimetres unless marked (°) for angles.
