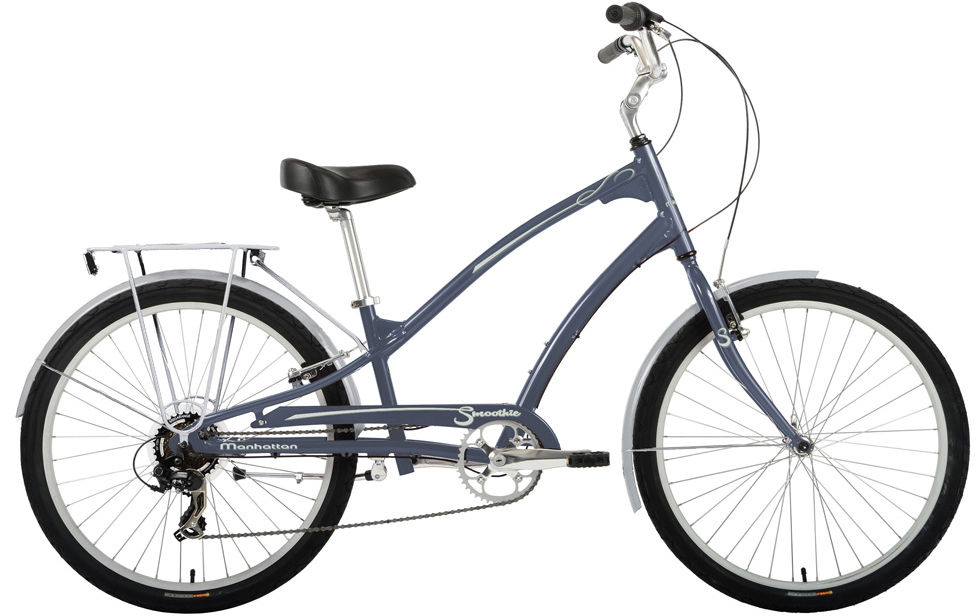

2018 KHS Smoothie geometry
Full frame geometry for the 2018 KHS Smoothie, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| Step-Thru | 594 | 284 | 67 | 67 | 200 | 634 | 305 | 667 | 566 |
| R | 620 | 273 | 67 | 67 | 228 | 634 | 356 | 824 | 566 |
| L | 644 | 288 | 65 | 67 | 254 | 686 | 432 | 852 | 566 |
All measurements in millimetres unless marked (°) for angles.
