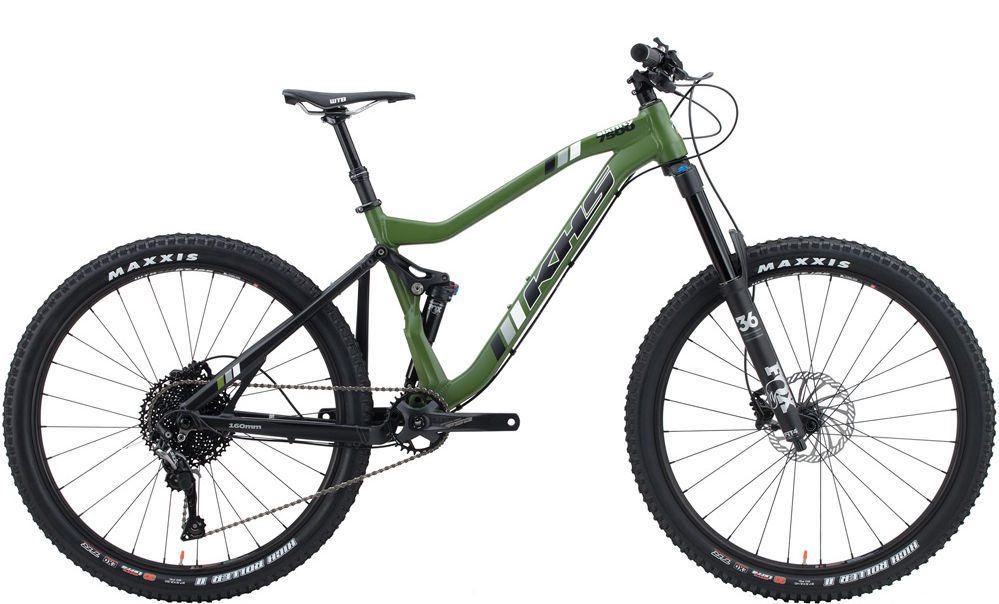

2018 KHS SixFifty 7500 geometry
Full frame geometry for the 2018 KHS SixFifty 7500, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 596 | 445 | 75 | 66.5 | 110 | 605 | 420 | 769 | 435 |
| S | 596 | 425 | 75 | 66.5 | 110 | 585 | 390 | 767 | 435 |
| L | 606 | 462 | 75 | 66.5 | 120 | 625 | 460 | 792 | 435 |
| XL | 615 | 480 | 75 | 66.5 | 130 | 645 | 500 | 820 | 435 |
All measurements in millimetres unless marked (°) for angles.
