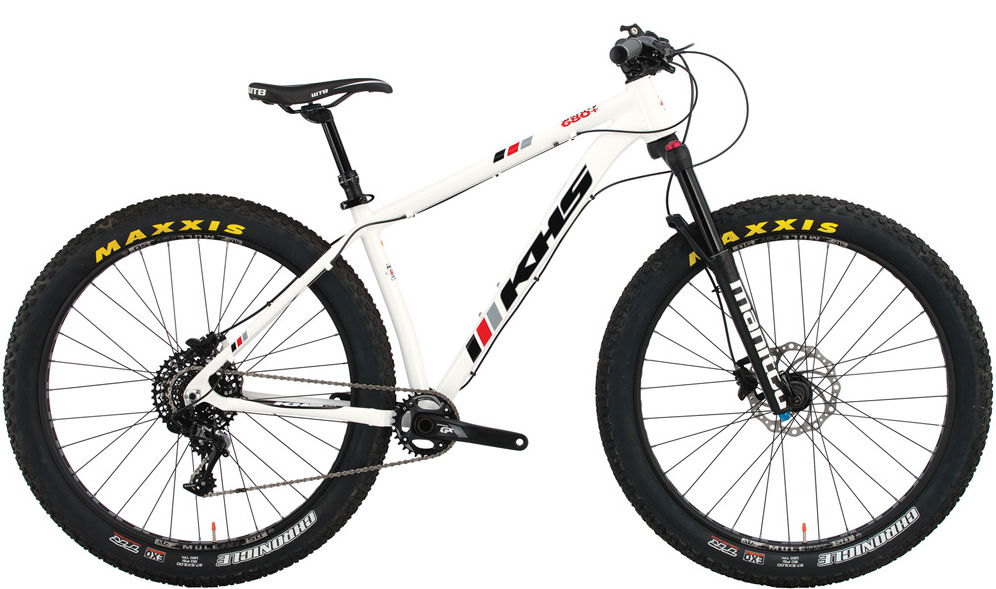

2018 KHS SixFifty 680+ geometry
Full frame geometry for the 2018 KHS SixFifty 680+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 616 | 367 | 73 | 67 | 100 | 555 | 381 | 754 | 430 |
| M | 630 | 392 | 73 | 67 | 115 | 585 | 432 | 782 | 430 |
| L | 640 | 418 | 73 | 67 | 125 | 615 | 483 | 808 | 430 |
All measurements in millimetres unless marked (°) for angles.
