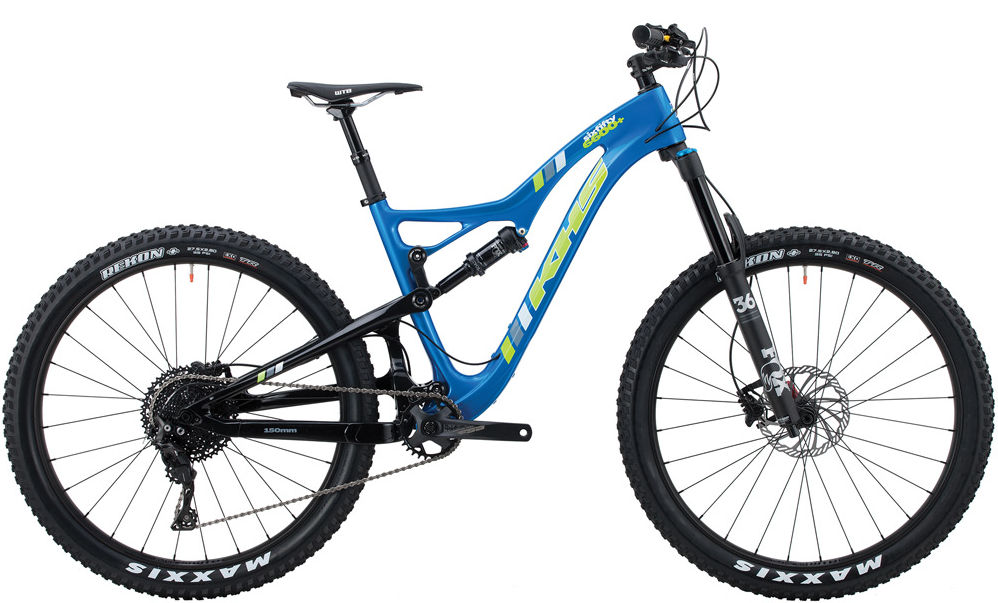

2018 KHS SixFifty 6600 geometry
Full frame geometry for the 2018 KHS SixFifty 6600, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 610 | 405 | 74 | 66.5 | 100 | 580 | 400 | 457 |
| M | 619 | 423 | 74 | 66.5 | 110 | 600 | 445 | 457 |
| L | 628 | 440 | 74 | 66.5 | 120 | 620 | 480 | 457 |
| XL | 638 | 457 | 74 | 66.5 | 130 | 640 | 530 | 457 |
All measurements in millimetres unless marked (°) for angles.
