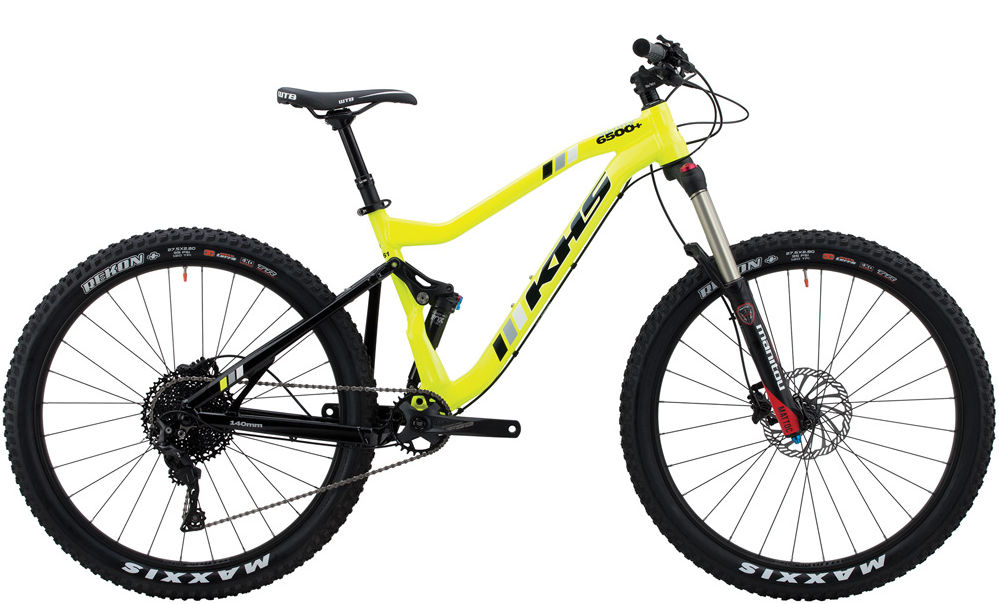

2018 KHS SixFifty 6500 geometry
Full frame geometry for the 2018 KHS SixFifty 6500, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 600 | 444 | 75 | 67.5 | 110 | 605 | 420 | 758 | 438 |
| S | 600 | 424 | 75 | 67.5 | 110 | 585 | 380 | 742 | 438 |
| L | 610 | 462 | 75 | 67.5 | 120 | 625 | 460 | 782 | 438 |
| XL | 619 | 479 | 75 | 67.5 | 130 | 645 | 500 | 813 | 438 |
All measurements in millimetres unless marked (°) for angles.
