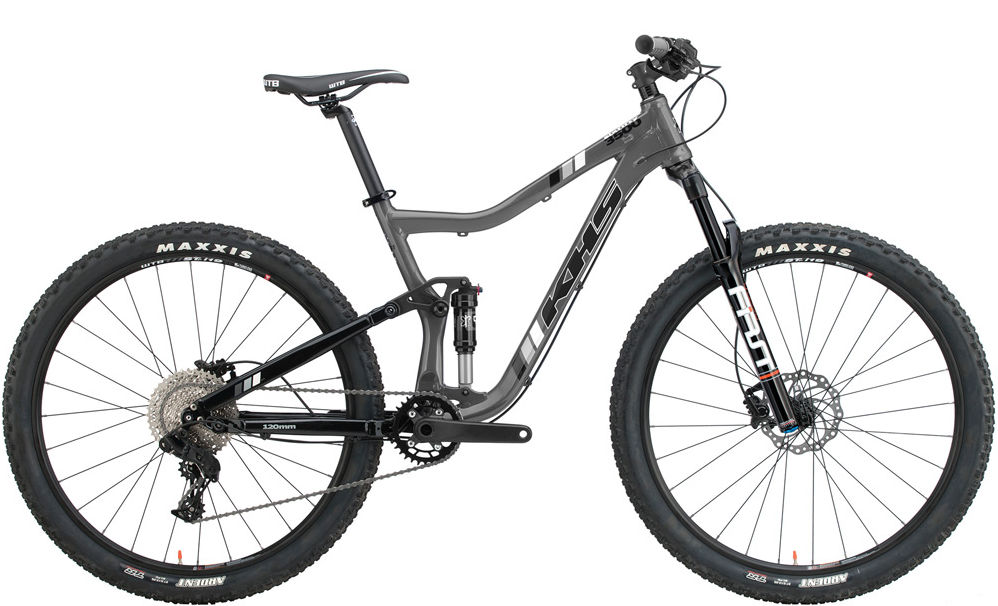

2018 KHS SixFifty 3500 geometry
Full frame geometry for the 2018 KHS SixFifty 3500, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 390 | 73 | 68.5 | 110 | 554 | 394 | 725 | 430 |
| M | 597 | 413 | 73 | 68.5 | 120 | 580 | 432 | 741 | 430 |
| L | 606 | 435 | 73 | 68.5 | 130 | 607 | 483 | 773 | 430 |
| XL | 615 | 457 | 73 | 68.5 | 140 | 633 | 521 | 789 | 430 |
All measurements in millimetres unless marked (°) for angles.
