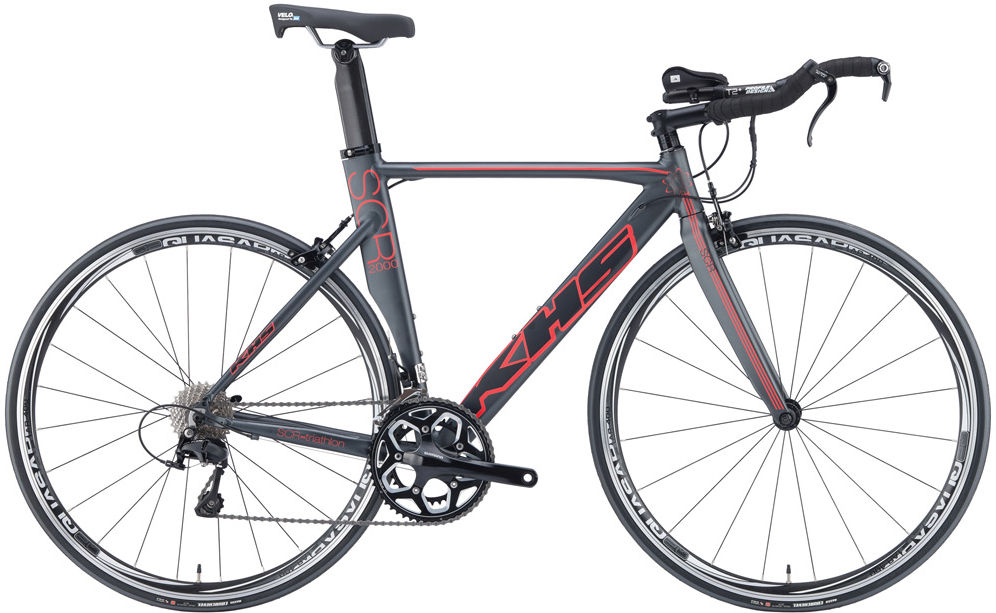

2018 KHS SCR 2000 geometry
Full frame geometry for the 2018 KHS SCR 2000, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 490 | 384 | 78 | 71 | 90 | 488 | 480 | 725 | 395 |
| S | 498 | 399 | 78 | 72.5 | 90 | 505 | 510 | 747 | 395 |
| M | 517 | 413 | 78 | 72.5 | 110 | 523 | 540 | 768 | 395 |
| L | 537 | 428 | 78 | 72.5 | 130 | 542 | 560 | 787 | 395 |
| XL | 556 | 443 | 78 | 72.5 | 150 | 561 | 580 | 806 | 395 |
All measurements in millimetres unless marked (°) for angles.
