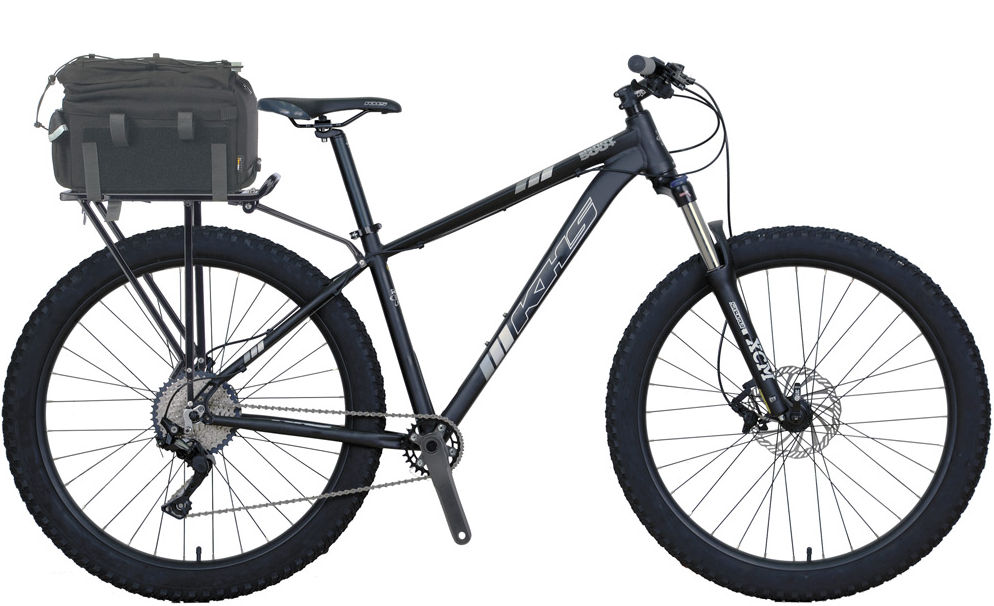

2018 KHS K9 Police geometry
Full frame geometry for the 2018 KHS K9 Police, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 405 | 73 | 67.5 | 90 | 591 | 381 | 701 | 430 |
| M | 617 | 423 | 73 | 67.5 | 100 | 612 | 432 | 731 | 430 |
| L | 631 | 442 | 73 | 67.5 | 115 | 635 | 483 | 763 | 430 |
| XL | 645 | 462 | 73 | 67.5 | 130 | 659 | 533 | 795 | 430 |
All measurements in millimetres unless marked (°) for angles.
