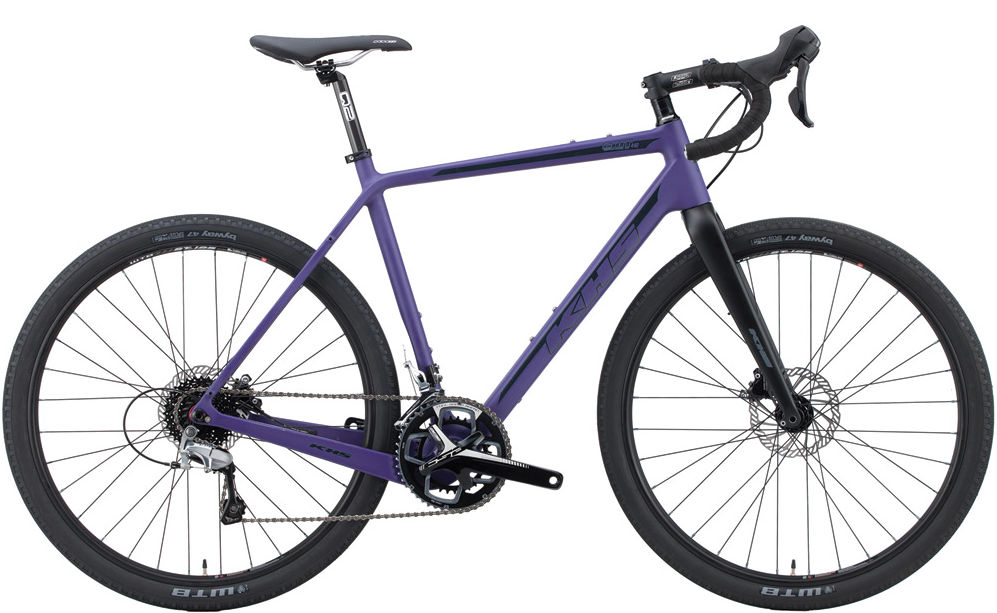

2018 KHS Grit Carbon geometry
Full frame geometry for the 2018 KHS Grit Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 568 | 376 | 73 | 71.5 | 150 | 550 | 540 | 803 | 435 |
| L | 589 | 385 | 73 | 72 | 170 | 565 | 560 | 823 | 435 |
| XL | 608 | 394 | 73 | 72 | 190 | 580 | 580 | 841 | 435 |
All measurements in millimetres unless marked (°) for angles.
